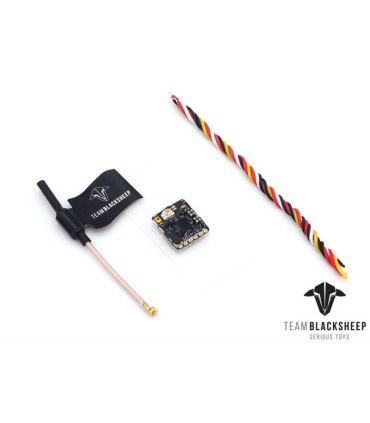

TBS UNIFY PRO32 Nano 5.8 GHz

Transmitter of very small size that can be installed on 99.99% of the chassis 3,’ 4’, 5’...

The 40HP give you the freedom of shopping in 25mw, on the band Raceband and without having to change the VTX !

Cleanswitch : you will not upset your comrades in flight when connecting your multi, but be careful not to be on the same frequency ;)

PitMode : allows you to reduce power to the minimum on a frequency that does not fight not the other drivers during a race or on a plot of vol, however, You have a few meters of range video to test your multi. Be careful to get out of this mode and go fly.

SMARTAUDIO V2.1 & CRSF : The technology SmartAudio allows you to control the UART for all of your video transmitter. This allows the control of the remote channel directly from a smart device (GER Crossfire, Bluetooth module, or Wi-Fi external required), your radio (GER Crossfire with remote control compatible with TBS Tango or OpenTX) or OSD (for example, Betaflight OSD).

Note : The French regulation imposes a maximum power of 25mW in the frequency of 5.8 Ghz, as well as a pilot in double command for the practice of flight in immersion (FPV). The responsibility of a Reflection of the World/Aerial-shop.com cannot be held responsible for any use of this material without proper license.

Technical characteristics:

• Operating voltage : 3-13V
• Supply current : 600mA
• Operating temperature : to monitor the flow of air
• Weight : 5 g (without antenna)
• Antenna connector : UFL
• Video Format : NTSC / PAL (depending on bezel FPV and camera)
• Output power : 25mW, 200mW*, 500mW*

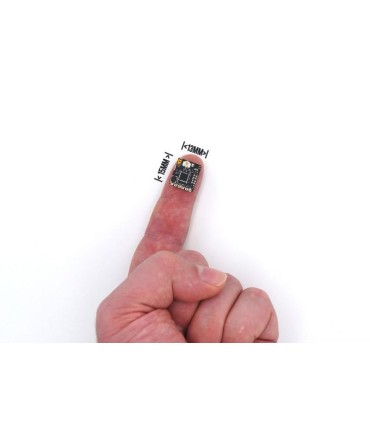

• Dimensions : 14.5(H) x 13(W) x 3(D) mm

* Important Note : The French regulation imposes a maximum power of 25mW in the frequency of 5.8 Ghz, as well as a pilot in double command for the practice of flight in immersion (FPV). The responsibility of a Reflection of the World/Aerial-shop.com cannot be held responsible for any use of this material without proper license.
