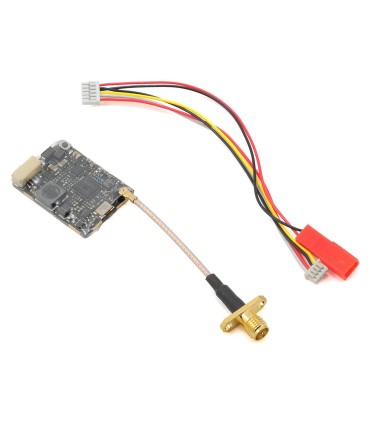

TBS Unify pro HV SMA

Transmitter of small size that can be installed on the majority of the chassis 3’, 4’, 5’...

The TBS Unify pro HV plugs in direct lipo, and therefore does not require external regulator, hence a weight gain interesting racer.

Smart audio : By connecting the white wire (audio) on a Uart to your card stolen, you will have the ability to control your Unify pro from your osd. Power, frequency and band.

Cleanswitch : you will not upset the autrespilotes in flight when connecting your multi, but be careful not to be on the same frequency.

PitMode : allows you to reduce power to the minimum on a frequency that does not fight not the other drivers during a race or on a plot of vol, however, You have a few meters of range video to test your multi. Be careful to get out of this mode and go fly

Note : The French regulation imposes a maximum power of 25mW in the frequency of 5.8 Ghz, as well as a pilot in double command for the practice of flight in immersion (FPV). The responsibility of a Reflection of the World/Aerial-Shop cannot be held responsible for any use of this material without proper license.

FEATURES

• Operating voltage : 4.5 - 25.2 V (2S - 6S)
• Supply current : 600mA
• Operating temperature : to monitor the flow of air
• Weight : 7 g (without antenna)
• Antenna connector : SMA female, with mounting
• Video Format : NTSC / PAL (depending on bezel FPV and camera)
• Output power : 25mW, 200mW, 500mW or 800mW*

* Important Note : The French regulation imposes a maximum power of 25mW in the frequency of 5.8 Ghz, as well as a pilot in double command for the practice of flight in immersion (FPV). The responsibility of a Reflection of the World/Aerial-Shop cannot be held responsible for any use of this material without proper license.
