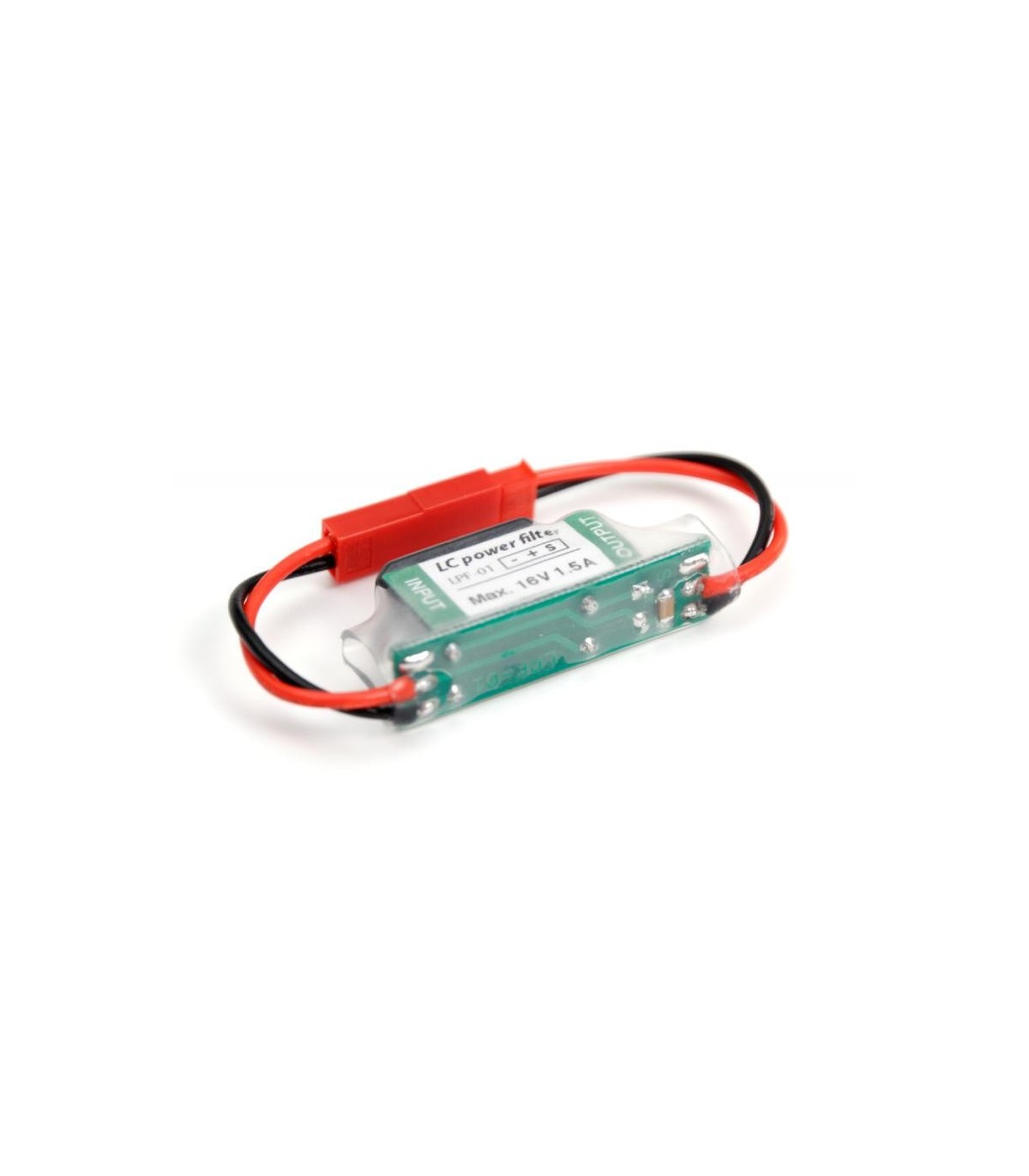

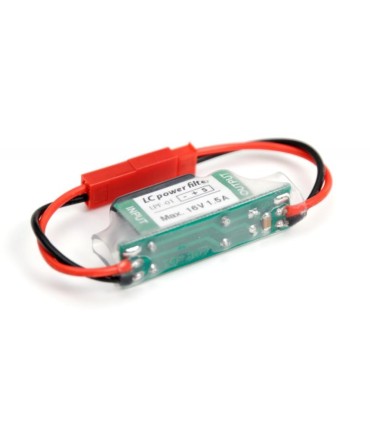

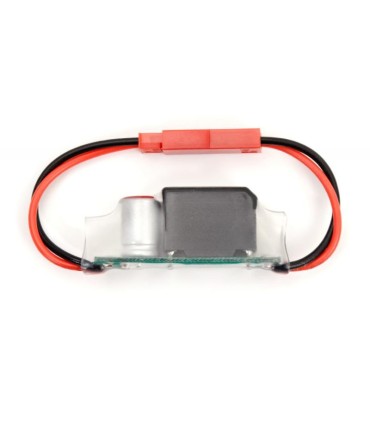

LC filter TBS

LC filter for camera and video transmitter on board.

Video transmitters are very sensitive to noise (electromagnetic interference) of the circuit board. Install this LC filter between your 3S battery and a video transmitter 12V or a camera for you to free yourself of these problems (lines on back video).

Technical characteristics :

• Voltage max: 16V DC
• Peak current: ~1.5 A
• cutoff frequency at -3dB: 127 Hz
• Voltage drop over filter: 180mV at 900mA
• operating temperature: -40 °C to +105 °C
• Dimensions: 37.7 mm x 8.8 mm x 14.5 mm
• Weight: 8.1 grams (JST connector included)
• RoHS Compliant
• designed and manufactured in Europe
