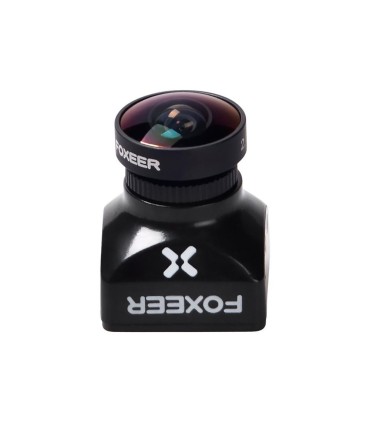

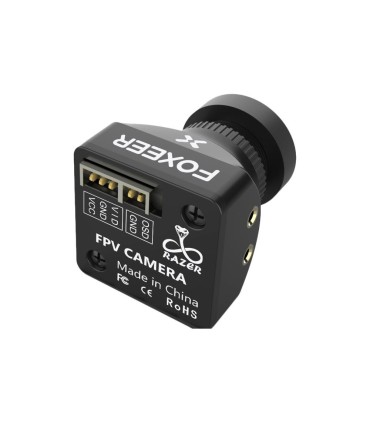

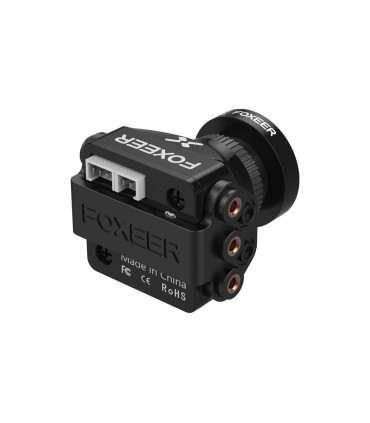

The Foxeer Razer Mini is a camera 1200TVL equipped with a CMOS sensor 1/3.
Compatible with PAL/NTSC.
It has a FOV including between 125° and 155° , depending on the mode.
The Foxeer Razer Mini lets you choose the image format : 4:3 and 16:9.
It supportsOSD and menu control by remote control. Power supply between 4.5 and 25 V.
With its mini size, it is particularly suitable for small frames 3".
The 3 strong points of this camera Foxeer Razer Mini are :
- CMOS sensor 1/3 1200 TVL
- PAL/NTSC switchable
- FOV maximum of 155°
Technical characteristics :
- Sensor CMOS 1/3
- Video resolution : 1200 TVL
- Size : 21,8 on 21,8 mm
- Power supply of 4.5-25V
- Video output : CVBS
- FOV 4:3 : H 125° D 155° / 16: 9 : H 125° D 145°
