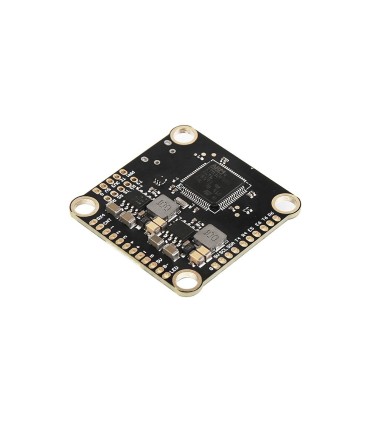

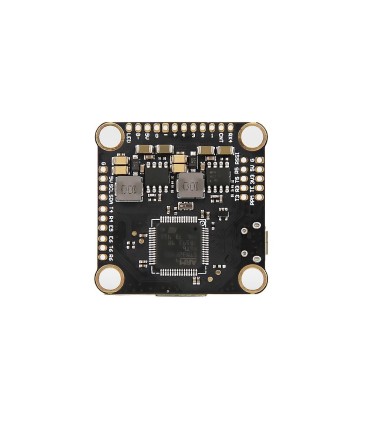

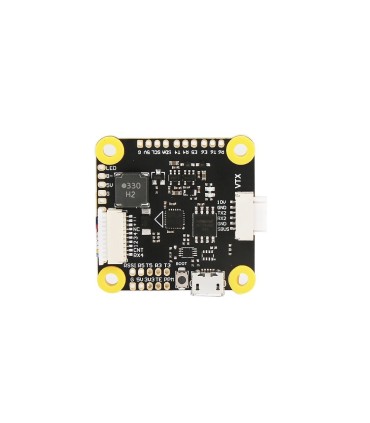

Map-of-flight TMOTOR F4 HD

UART 5-RX includes an inverter, thus requiring a signal receiver inverted to connect UART5-RX, such as SBUS.
ADC-CURRENT requires the connection of the existing interface of esc to read the current value.
Uart 4-RX has need to connect the telemetry to the esc to read the telemetry data.

5V does not provide power to other devices except the receiver.

Technical Characteristics :

Chip main control : STM32F405RGT6
Gyroscope : MPU-6000
Barometer : Optional (please contact supplier if you have a link)
RAM : on board 16 Mb
Input voltage : 12V-25.2 V ( 3-6S)
BEC : 5V/2A (receiver), 10V/2A (VTX)
Size : 37MM tall by 37 MM wide
Mounting Distance : 30.5 mm by 30.5 mm
Weight : 8.4 g
Firmware : TMOTORF4( BETAFLIGHT)
