Connector XT60 female mounted on a cable of 10 cm.

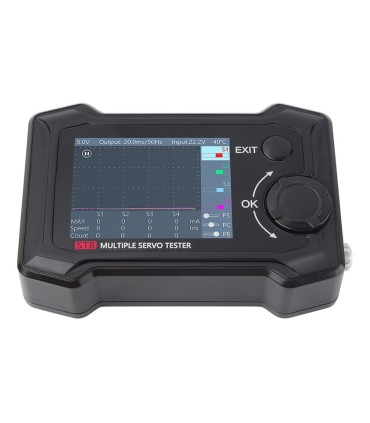

Tester servo ST8 TOOL KIT RC
Tester servo ST8 TOOL KIT RC
€59.99
(tax incl.)
Love0
Add to compare0
Add to wishlist

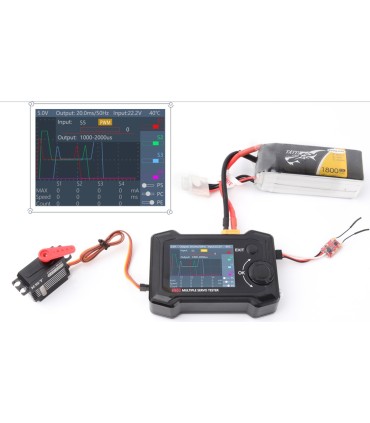

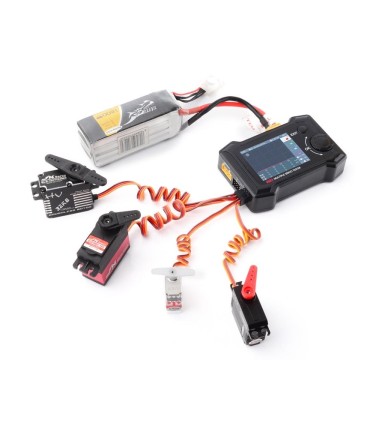

This tester allows you to test all your servos and, in particular, to measure very precisely their consumption to better size your battery receipt. And here it is only one example among many possibilities: to verify the reliability of a servo, its rotation speed, etc...

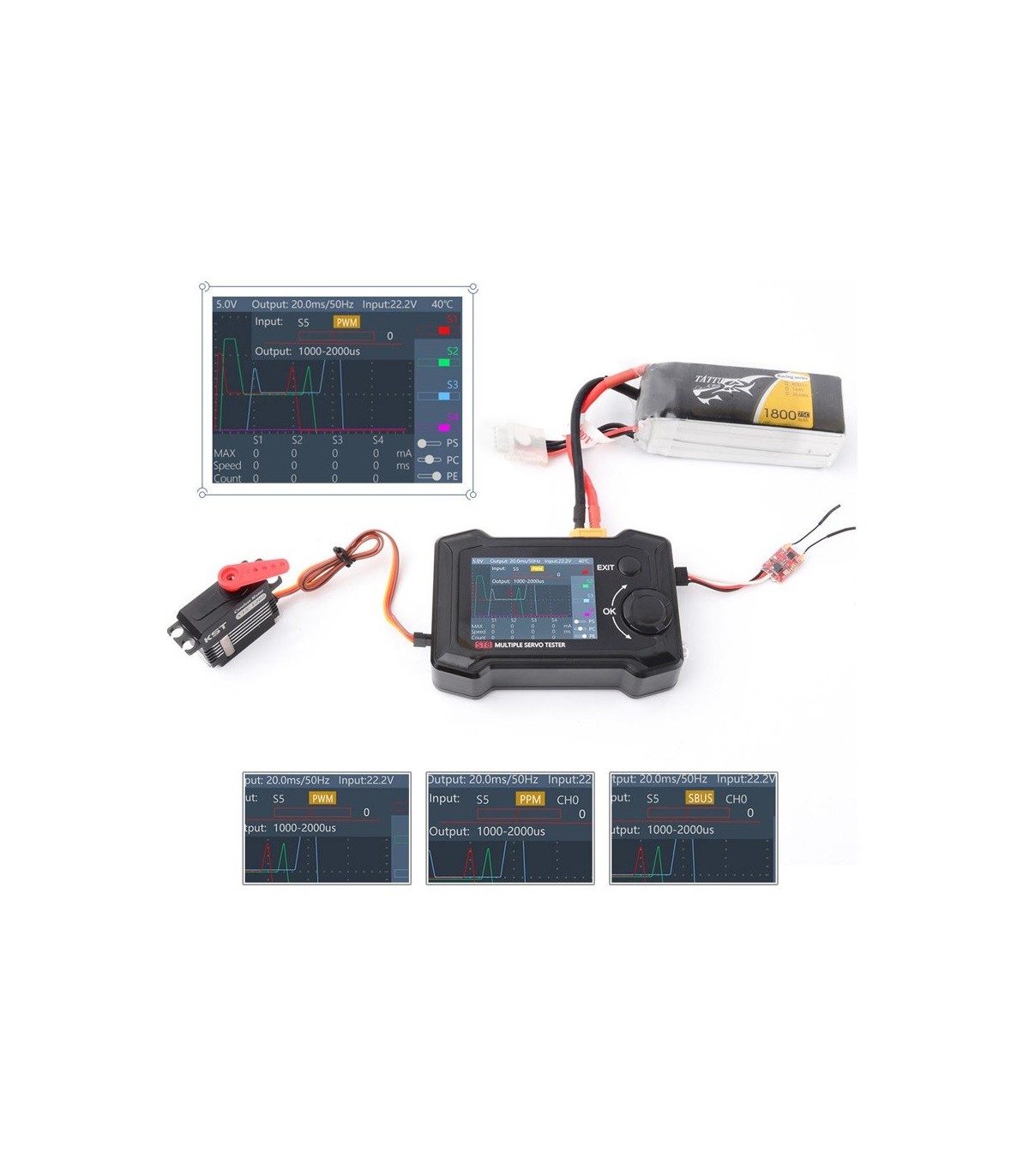

It supports different types of signals such as PWM,PPM,SBUS, with an accuracy of 1 us.
A video of the English demo is visible here
Technical characteristics:
- Number of outputs: 8
- Load max: 100W
- Input voltage: 7.0-28.0V@MAX 10A
- Output voltage: 5.0-28.0V@MAX 10A
- Voltage of the output signal:
5.0-8.4V@MAX 2A(S1-S4)
5.8-8.4V@MAX 4A(S1-S4)
- Output Signal
100µs-2900µs@33-1000Hz @S1-S4
- PWM 500ás-2500µs @S5
- PPM 8CH @S5
- SBUS 16CH @S5
- P1 Button: 1000-2000 us @P1
- Micro USB: Update@USB3.0
- screen 2.4" TFT RGB LCD Screen(320*240 resolution)
- Dimensions : 96*68*26mm
- Mass: 140g
