50A SkyRC e-Fuel Power Supply

The eFUEL Switching Power Supply is designed to use 100-240V power source and converts to DC 15-24V and can offer up to 50 amps of direct current. The maximum output current is set by the output power of this power supply and does not exceed 50 amperes.
The Maximum current power = 1200W per output voltage. (Ex. DC20V output, max current =1200W/20V=60A,. DC24V output, max current=1200W/24V=50A)

Feature
* One DC power supply, up to 50 amps, three output channels with ON/OFF switch.
* Adjustable output voltage 15-24V
* Wide LCD display Indicates Ampere output voltage and current
* Intelligent cooling fan
* Overheat protection
* Over loading protection
* Short circuit protection

DC output
A main current output can deliver up to 50 A, three outputs (each for a maximum of 10 A) equipped with inters ON / OFF give you all the power you need for your high-power applications, or use several chargers simultaneously thanks to the three sets of sockets for integrated banana plugs.
Output voltage adjustable from 15 to 30 V.

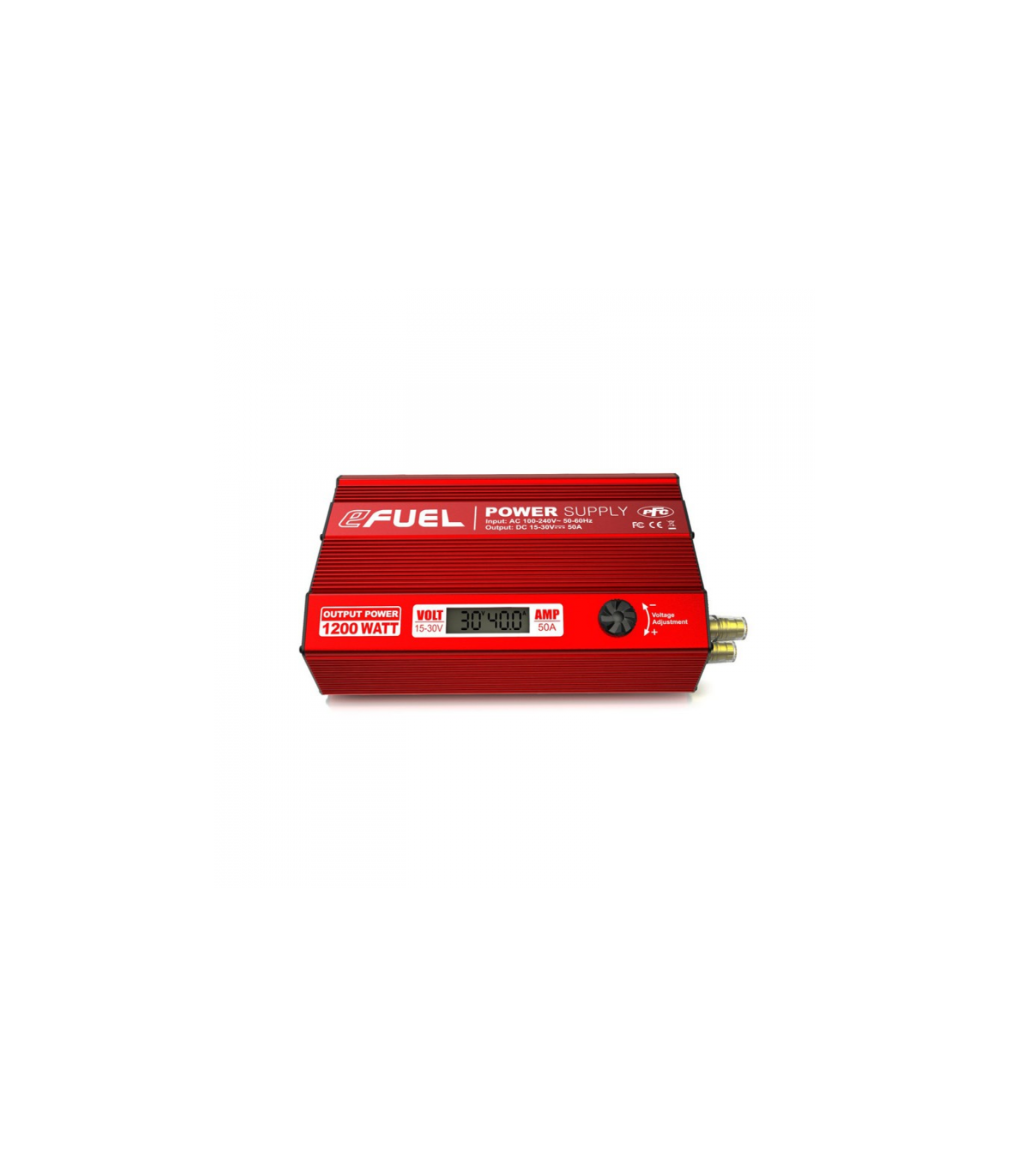

LCD Display
The output voltage and current are displayed on the LCD digital display on the front side, allowing you to monitor the correct operation of the power supply.

AC power supply 100-240V
Use all over the world: No need transformer, use the power supply safely everywhere.

Two USB sockets
To charge your tablets, smartphones, cameras, you have a total of 5V / 2.1A.

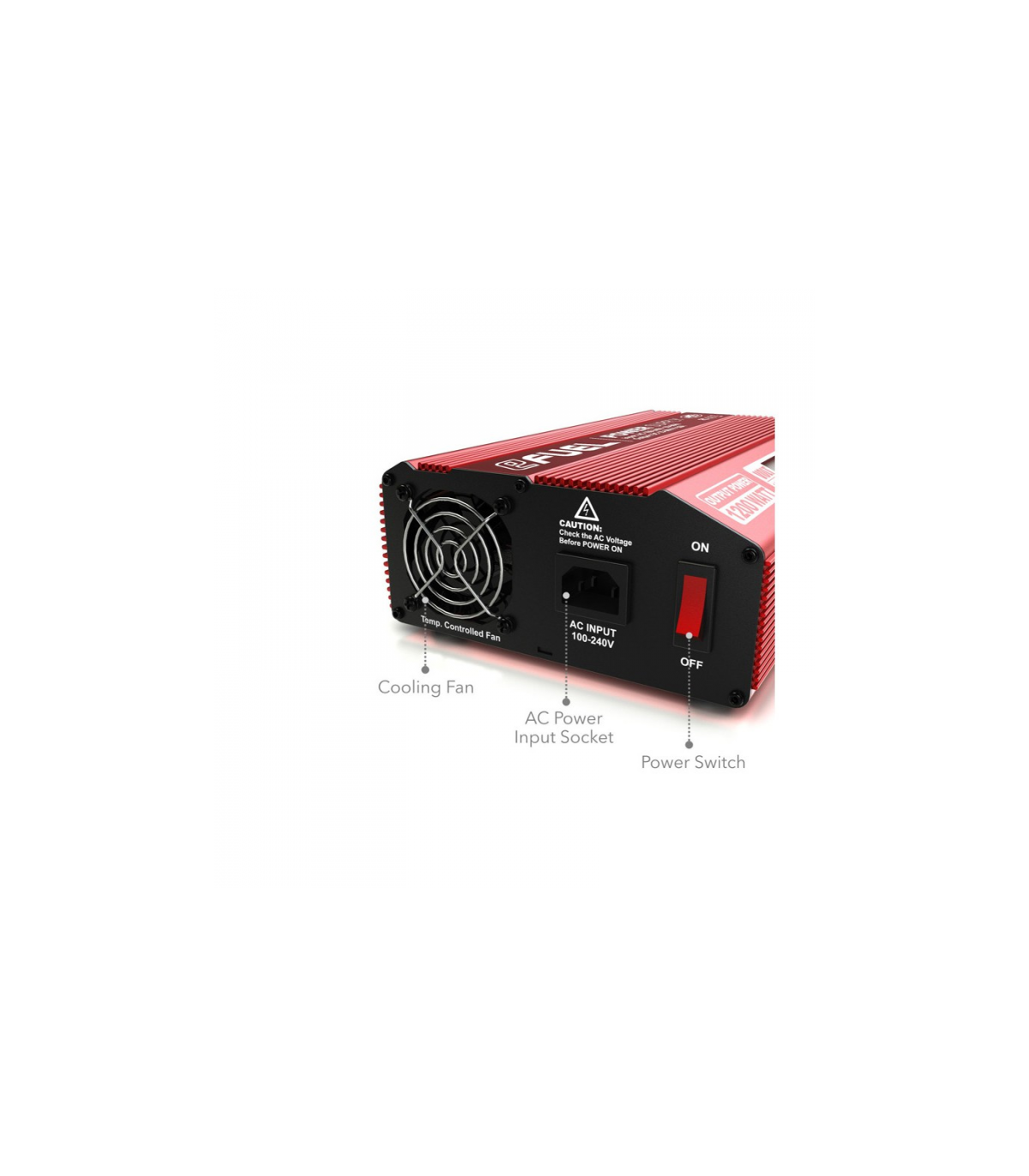

Smart fan
As soon as the temperature reaches 50°C, it turns on automatically.

Security features
Protections against too strong current, overvoltage, overload and overheating.

Output short circuit protection, safer and more reliable.

Technical Data Efuel 60A :
Voltage :. 100-120V AC (PSU 60) ) / 200V-240V AC (, 60ADU PSU)
AC input frequency 50Hz/60Hz
Output Voltage: 15-30V DC±0.5V
Output current 60A: . ±3A @ 20V DC /  50A±3A @24V DC
Current overload protection: 63A
Input fuse : 200V-240V Fuse 20A AC
Output voltage ripple: less than 300mV
Efficiency: 89%
Overheat protection: <65°
Cooling method: Fan
Operating temperature: 0-40°
Operating Humidity: 0-90%
