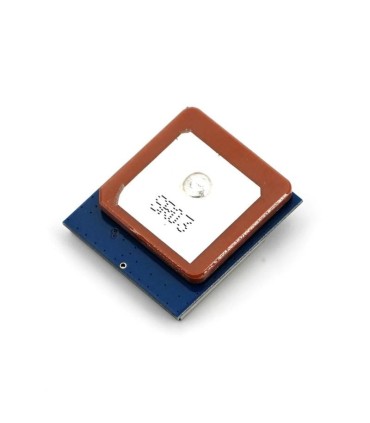

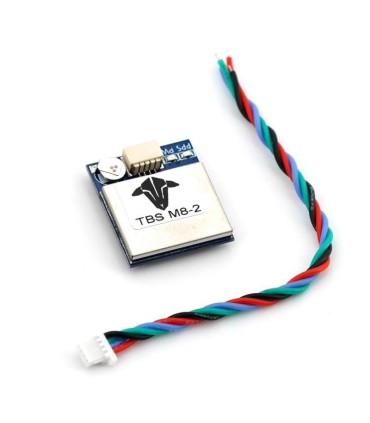

Module GPS M8.2 TBS

The new geolocation module proposed by TBS, based on GPS and Glonass! It is able to decode the signals sent by both the American and Russian satellite constellation.

Technical specifications:

• Chipset - ublox UBX-M8030
• Frequency - L1, 1575.42MHz; L2,1561.10MHZ；L3,1602.00MHZ
• Transmission speed - 4800bps-921600bps (default - 9600bps)
• Channel - 72
• Sensitivity - (Tracking: -164dBm) | (Capture: -159dBm|/ (Cold Start - 147dBm)
• Cold start (cold) - average of 26 seconds
• Hot start (warm) - average of 24 seconds
• Hot start (hot) - 1 second on average
• Accuracy - (Horizontal position: stand-alone <2m average) | (SBAS <2.0 m average) / (Timepulse signal: RMS 30 ns)
• Maximum height - 50000m
• Maximum speed - 500 m/s
• Maximum acceleration - ≦ 4G
• Refresh rate - 1-10 Hz
• Size - 20 x 22 x 6 mm
• Weight - 5.2g
• Input Voltage - 3.3V-5V
• Betaflight and Pixhawk compatible
