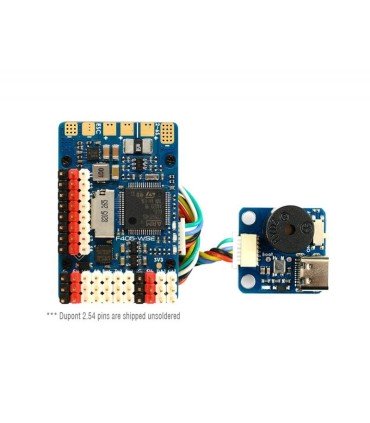

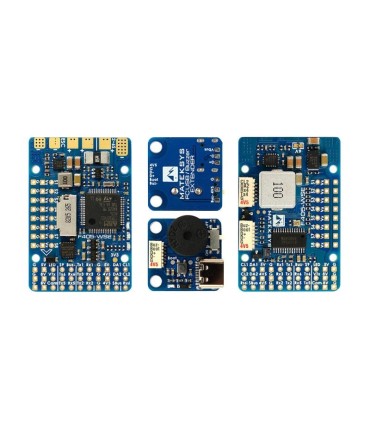

MATEK F405-WSE Flight Map

MATEK F405-WSE Flight Map

Technical specifications:

• MCU: 168MHz STM32F405RGT6 1MB Flash
• IMU: MPU6000 (SPI1) (to be calibrated before your welds!)
• Model no.: DPS310 (I2C1)
• OSD: AT7456E (SPI2)
• Black Box: microSD socket (SPI3)
• VCP & 6x UARTs,
• 1x Softserial_Tx option (TX2 pad, INAV)
• 10x PWM outputs(S1~S9, LED)
• 2x I2C
• 3x ADC (voltage, current, RSSI)
• 3x LEDs for FC STATUS (Blue, Green) &3.3V Indicator(Red)
• Built in inverter on UART2-RX for SBUS input
• PPM/UART shared: UART2-RX

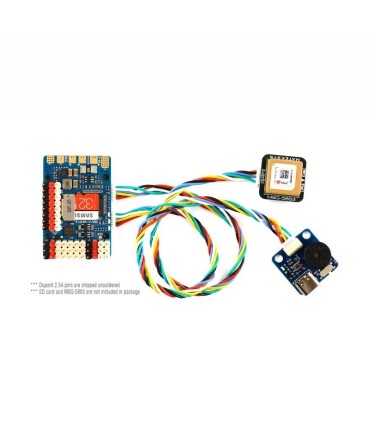

• 1x SH1.0_6pin connector (4V5/G/TX4/RX4/DA2/CL2) for GPS/compass
• 1x SH1.0_6pin connector for USB & buzzer
• DJI FPV OSD: any spare UART
• FrskyOSD: any spare UART
• 6~30V DC IN (2~6S LiPo)
• 132A High-precision Current Sense (Scale 250)
• PDB/Current sense resistor: 60A continuous, 132A burst.
• 5V 2A BEC for FC & Peripheral
• Vx 5A BEC for servos, 5V/6V option
• 8V 1.5A BEC for VTX & camera
• AC 3.3V 200mA
• Battery voltage probe: 1k:10k
• Dimensions: 44 x 29 x 10 mm
• Size: 25 x 25mm, φ2mm
• Weight: 20g with base plate and USB/buzzer adapter
