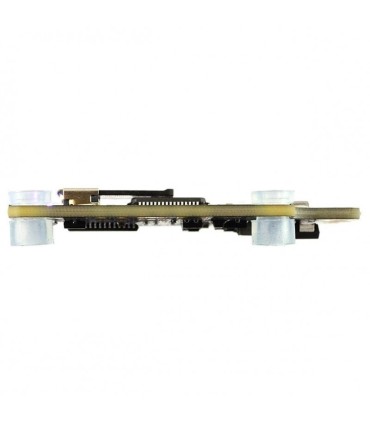

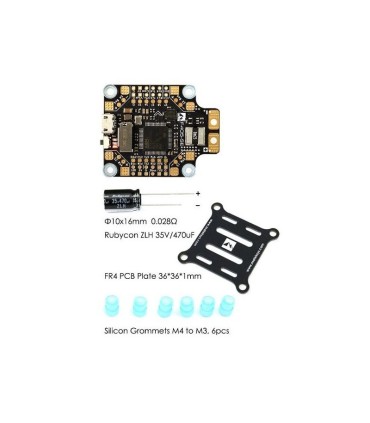

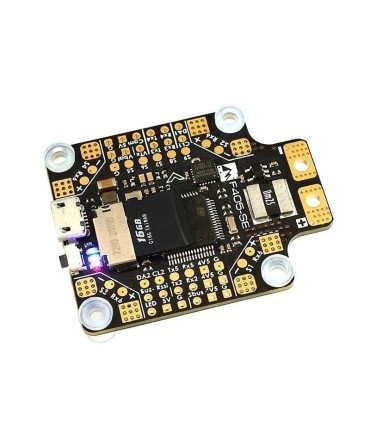

Matek F405-SE Flight map

This Matek F405 flight card-Focuses all the advances in technology specific to flight cards!

It is equipped with an F405, MPU6000, Baro DPS310 processor.

Technical characteristics:

• MCU: 168MHz STM32F405RET6
• IMU: MPU6000 (SPI)
• Baro: DPS310 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: microSD slot (SPI)
• VCP & 6x Uarts, 1x Softserial_Tx supported
• 9x PWM Outputs (7x Dshot compatible with BF/INAV)
• 2x I2C
• 3x ADC (Voltage, Current, RSSI)
• 4x RX6 pad(1 per corner) for kla telemetry ESC BLheli32
• 4x ESC Pads power supply and signal
• 1x Group G/S1/S2/S3/S4 pads for ESC 4in1 Signal/GND
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
• UART2-RX for SBUS input
• PPM/UART Shared: UART2-RX
• Filtered VBAT output power for VTX
• Mounting: 30.5 x 30.5mm, Φ4mm with Φ3mm Grommets
• Dimensions: 36 x 46 mm
• Weight: 10g
• Camera Control: Yes
• Smartaudio & Tramp VTX protocol: Yes
• DJI FPV OSD protocol: Yes
• WS2812 Led Strip: Yes
• Beeper: Yes
• RSSI: Yes
