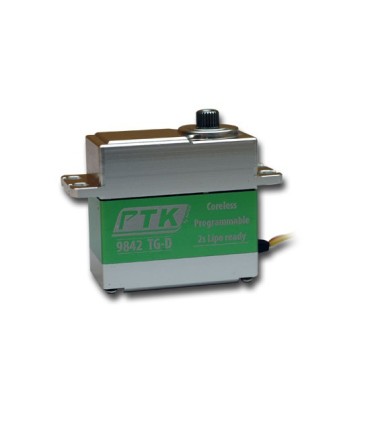

ProTronik 9842 TG-D Digital Servo

High-end servo, aluminum case, super powerful, fast, waterproof, perfectly adapted to heavy efforts, it is a quality servo, combining torque, speed and precision!
Everything in this servo has been designed to satisfy the most demanding.

- Coreless motor with CNC machined cage
- Digital
- Waterproof
- "2S Lipo Ready": optimized performance whether under 4.8V, 6V or 7.4V. The HV for everyone!

Due to the power of this servo, for conventional use without HV, a quality power supply of type LiPo 2S + 6V regulator is necessary.

Technical characteristics:

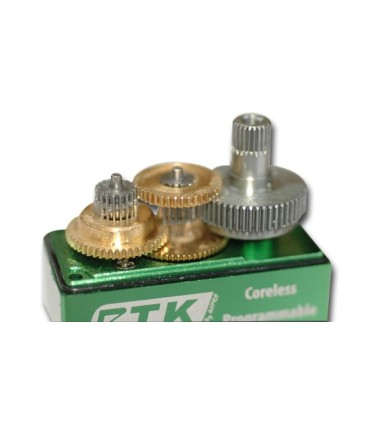

• Sprockets: Titanium Metal
• Bearing: YES 2
• Shaft bearing: YES 3
• Motor: Coreless
• Weight: 71.6 grs
• Dimensions: 40.5 x 38.3 x 20mm
• Torque / Speed under 4.8V: 13.0kg/cm - 0.12 sec/60°
• Torque / Speed under 6.0V: 15.5kg/cm - 0.09 sec/60°
• Torque / Speed under 7.4V: 18kg/cm - 0.08sec/60°
• Working voltage: 4.8V - 8.4V
• Cord length: 300mm
• Socket: Universal JR
• Dead band: 2µs (Adjustable)
• Electrical Accuracy: 1.2µs (Adjustable)
