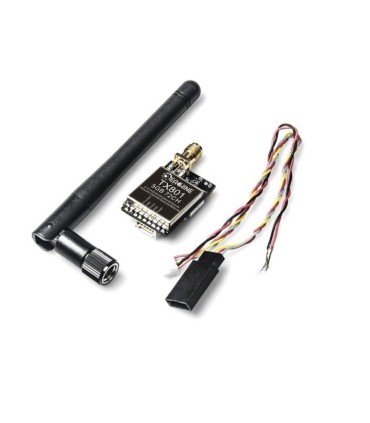

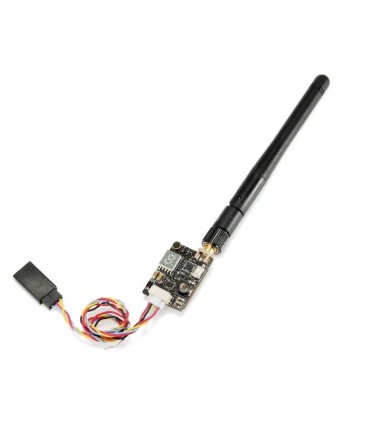

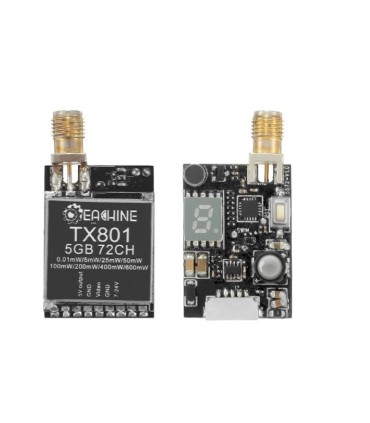

Transmitter video TX801 72 channels
Transmitter video TX801 72 channels, which offers the possibility to switch between different powers of emission: 0.01 mW, 5mW, 25mW, 50mW, 100mW, 200mW, 400mW and 600mW.
Technical characteristics:
- Antenna Gain: 3Dbi
- Connector : RP-SMA
- Frequency: 5325-5945MHz
- Number of channels : 72
- Transmission power : 0.01 mW/5mW/25mW/50mW/100mW/200mW/400mW/600mW
- Video Format: NTSC/PAL
- Consumption: (max)7V-550mA ;12V / 300mA ;24V-160mA"
- Operating voltage : 7-24V
- Output voltage : 5V
- Weight :7.3 g
- Dimensions :28 x 20 x 8mm
