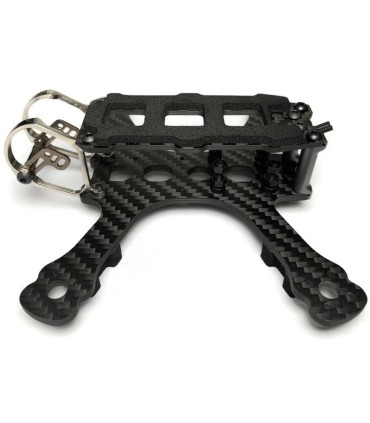

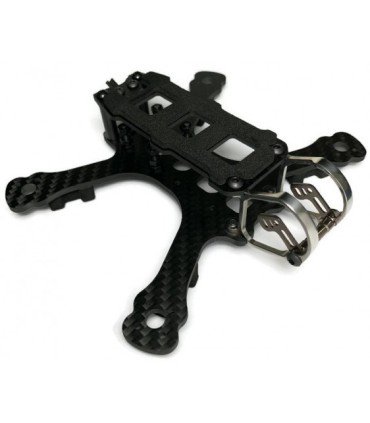

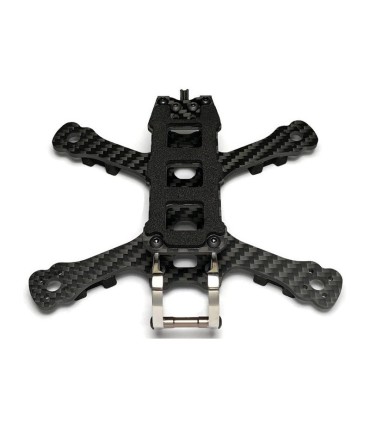

Frame Armattan Gecko 3"

The chassis Gecko 3 inches is the last-born of the frames mini freestyle of Armattan. Designed around what was made the the well-known models Japalura and Rooster in the field of FPV, this frame offers the best protection and the best quality that the world of multirotor can offer.

The cage is machined from titanium to 6 axes. This is a first for the brand Armattan, and this gives the chassis a very attractive look. With its design, the enclosure protects your camera, even when collisions are the most serious. And it is even more important for the chassis, which has been designed to safely protect the micro-cameras 19 mm market: SD or HD.

The mounting system in a stack is very convenient. You no longer have to choose between the M2 or the M3 because the Gecko is planned for the two. While the stack before M2 20x20 has been designed to be used with a mini-card-camera Split HD (such as the Runcam Split Mini or the Caddx Turtle), you can insert the card of your choice. The mounting holes in rear 20x20, M3 will be there for your FC, your ESC, your VTX, for example. And with the height of the usual 22 mm, you will find that your batteries are secure in relation to the propellers, but are also sufficiently low to lower the center of gravity.

The gecko 3" has also been designed so that the carbon itself is protected from impact thanks to the spacers out of aluminum.

Technical characteristics:

• Frame weight : 42g
• Pitch motor: 139mm
• Plate thickness: 3mm
• Materials : cage camera Titanium, plastic Spacers, Aluminum, Protection camera Aluminum
• Engine model: 14XX
• Stack Mount front: M2, 20x20mm (for card camera HD)
• Stack Mount rear: M3, 20x20mm (for the FC)
• Camera mount FPV : compatible Micro
• Stacking height max. : 22mm
• Parts warranty: all components of the frame
