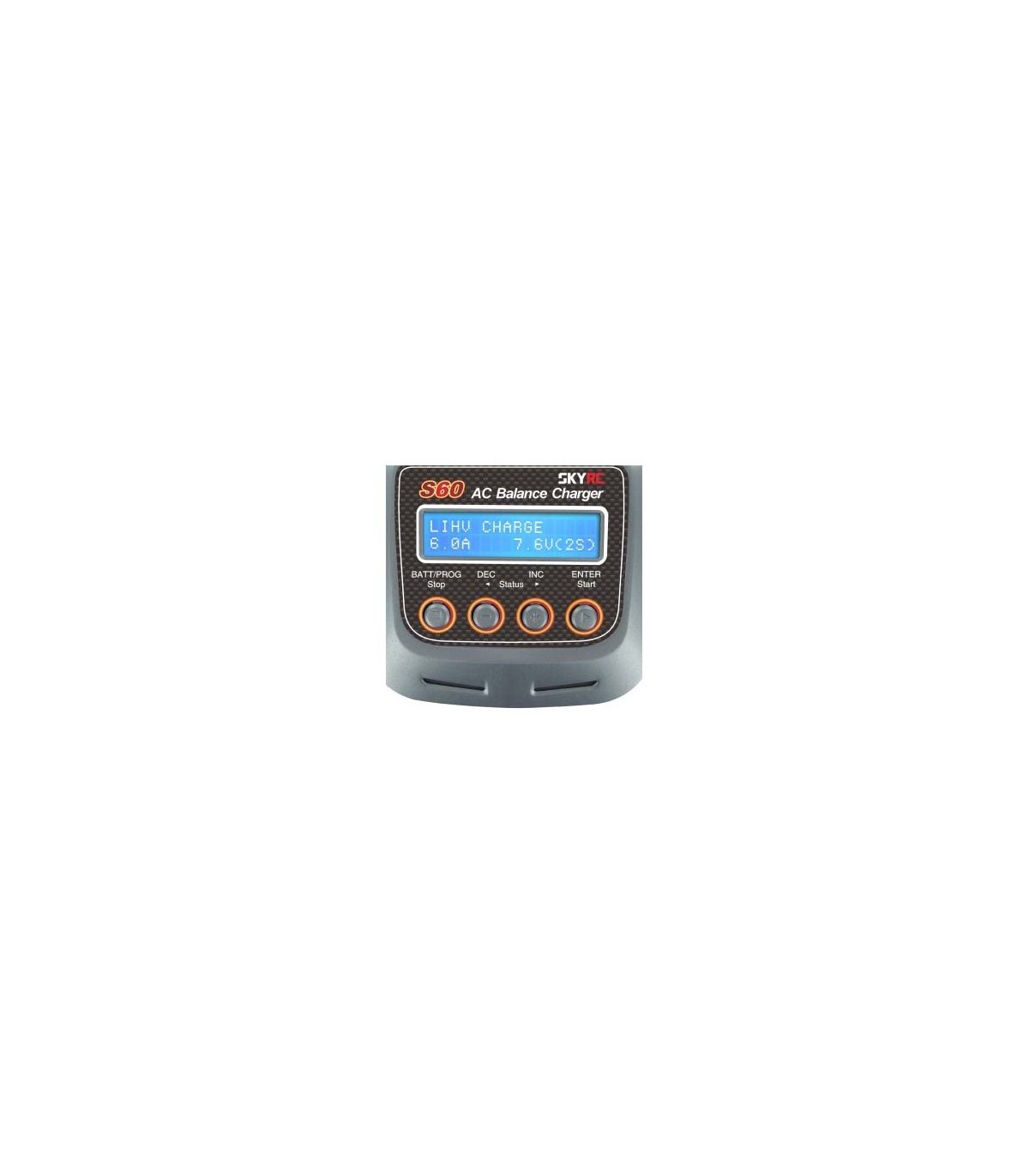

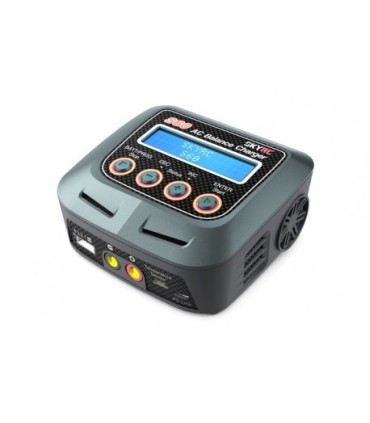

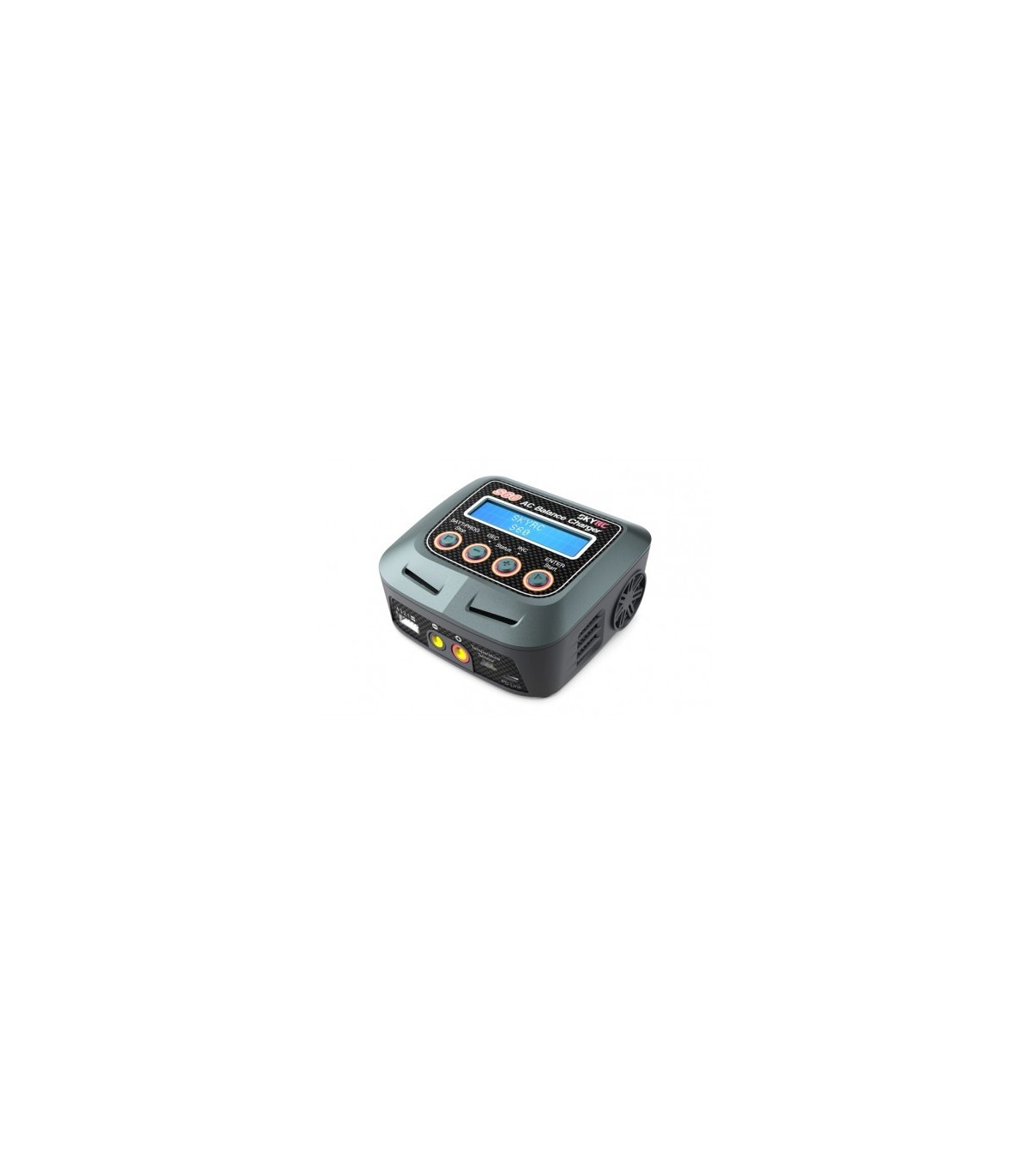

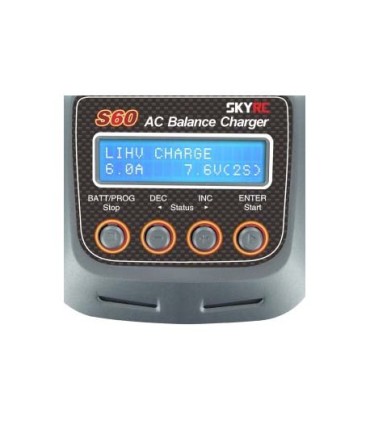

Charger SkyRC S60

Charger compact power for LiPo/LiHV/Li-FE and Li-Ion battery of 2 to 4 elements, NiMH and NiCd batteries of 6 to 8 elements and batteries lead-acid of 6 to 12 volts.

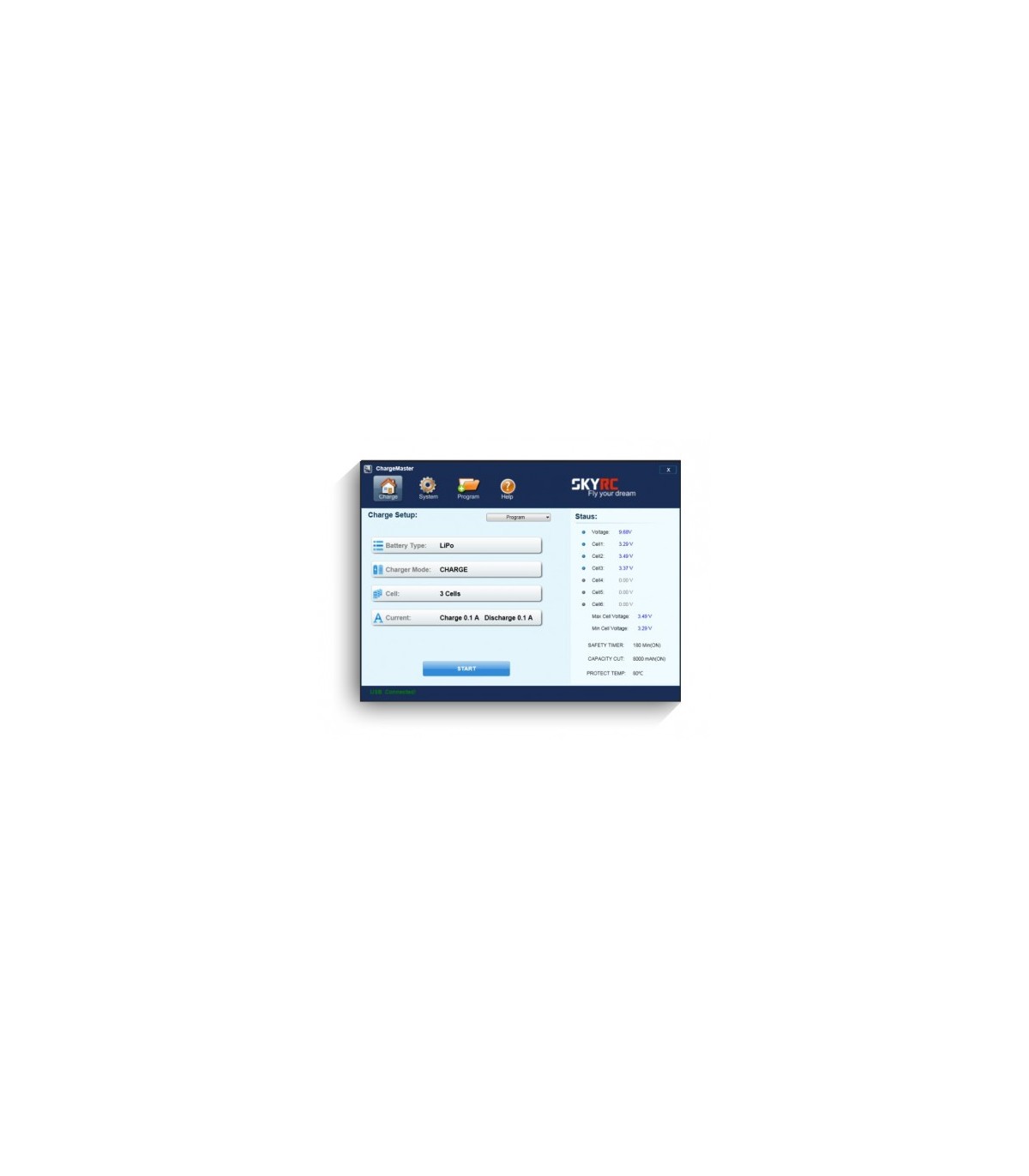

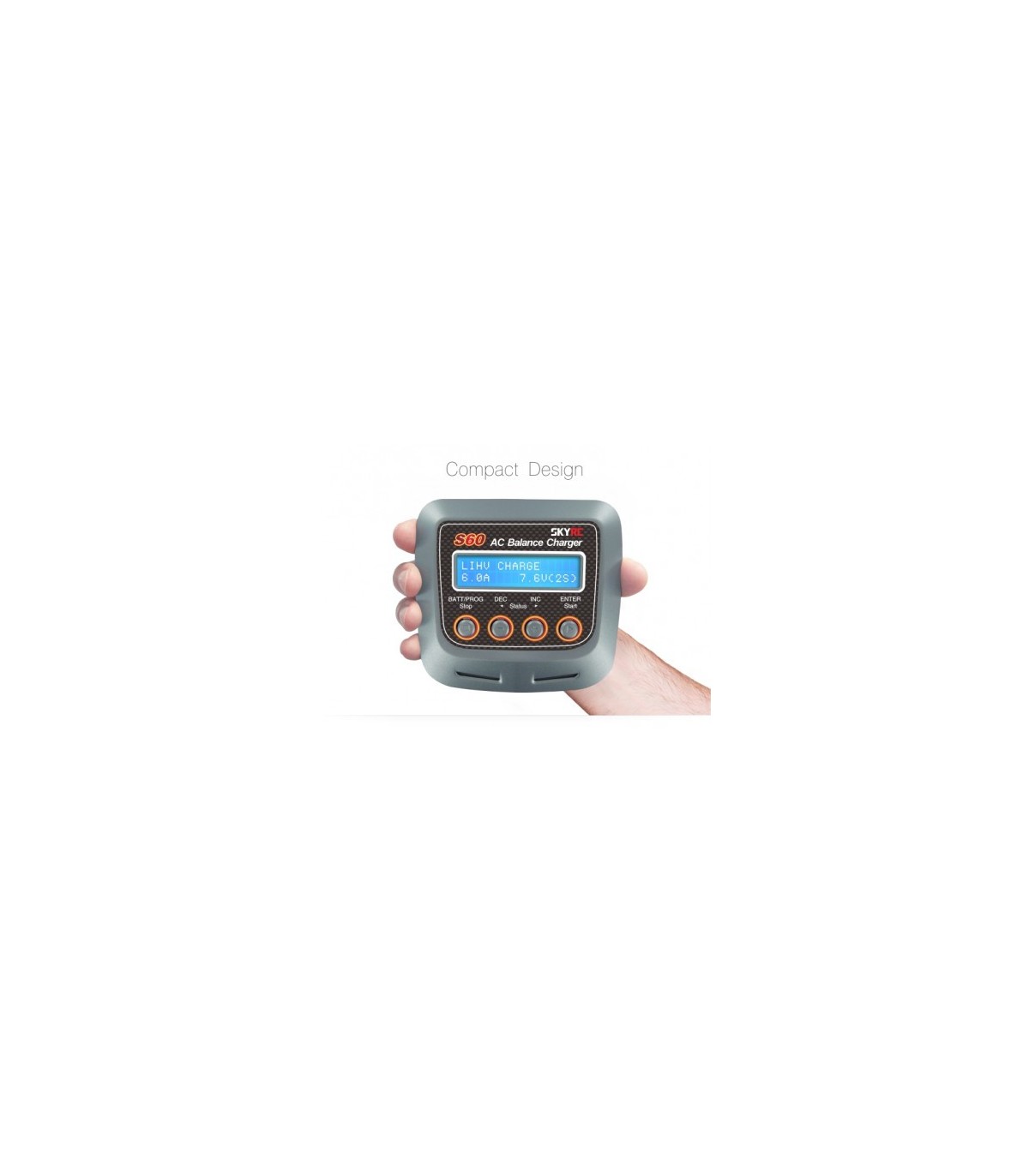

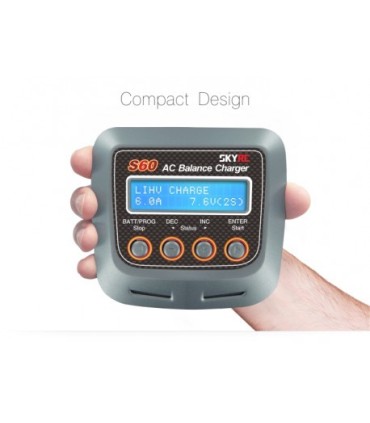

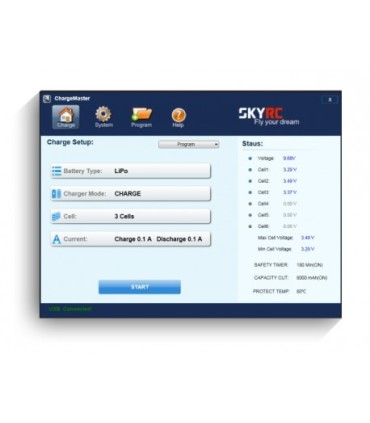

The charger/discharger professional S60 AC SkyRC stands out leaving its looks stylish and compact. It can load partiquement all types of rechargeable batteries of the market, including the new generation of LiPo batteries with a voltage end of charge of 4.35 V. furthermore, the user can adjust the tension of the end of the load, or connect the charger to the PC to order it from the computer, or to update the firmware. The user can also use it as a test battery, for measuring the internal resistance. Limits auto charging current, capacity, temperature and time of operation to make the charger more safe to use.

Depending on the type of rechargeable battery, the charge modes available adapt to the needs of the user :

• LiPo/LiFe/LiIon : normal Charging, Charging with balancing, fast Charging, discharge, Storage
• NiCd/NiMH batteries : normal Charge, Charge, Auto, Discharge, Cycle, Re-Peak
• Battery lead : normal Charge and discharge

Balancer battery Lithium : The SKYRC S60 uses a balancer of individual elements. It is not necessary to connect a balancer external load balancing.

Memory battery pack : charger afraid to store 10 profiles of charge/discharge for you to make life easier. You can recall these data without having to reprogram all the cells in the pack.

Tester rechargeable batteries : The user can control the total voltage, the tensin of the top-most item, the item with the lowest and the voltage of each element of the pack.

Measurement of internal resistance : The user can measure the internal resistance of the pack full, and that of each of the elements, as well as the values the highest and the lowest.

Maximum security : automatic Limit charge current, capacity, temperature and time of operation. These safety makes the charger safer than B6.

Voltage control charge termination (TVC) : The charger allows the user to adjust the voltage end of charge and end of discharge.

Technical characteristics:

• Net weight : 310 g

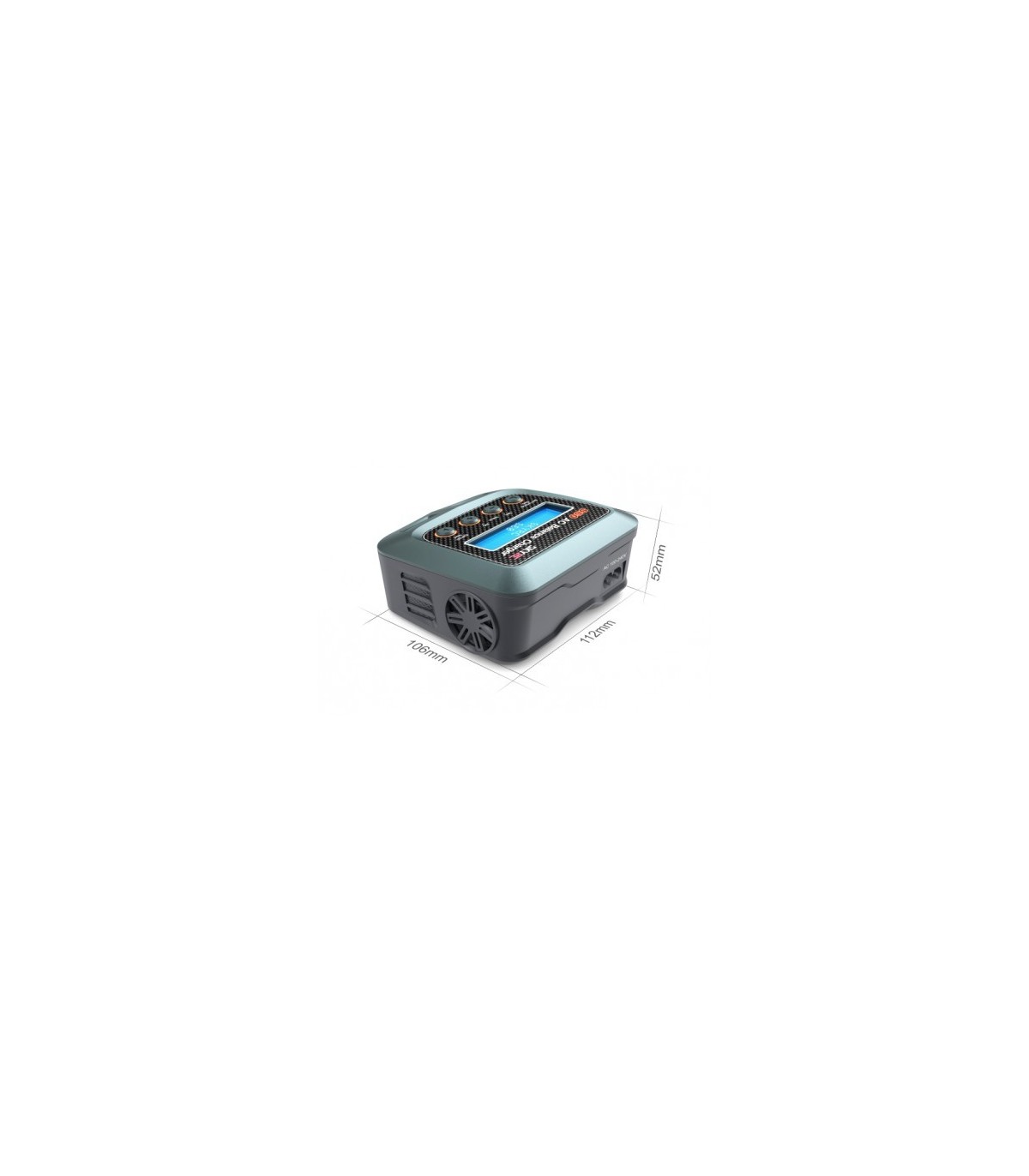

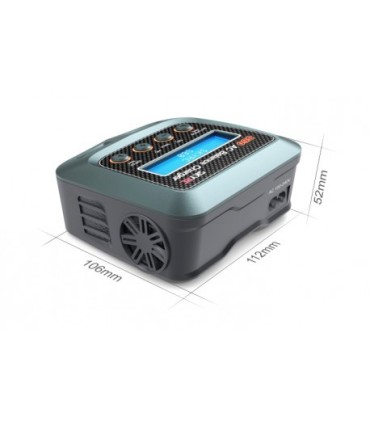

• Dimensions : 112 x 106 x 52 mm
• Load power: Max : 60W
• Power discharge : 10 W
• Charge current : 0,1 - 6 A
• ourant discharge : 0.1 a - 2
• Current balance : max 200 mA/Element
• Current maintenance: 50-300 mA - Off
• Number of cells LiPo/LiFe/LiIon/LiHC: 2-4S
• Number of cells NiMH/NiCd : 6-8
• Voltage battery lead-acid : 2-12 V

Content of the product:

• Loader S60
• Power cord
• Charging cord with connector XT60
