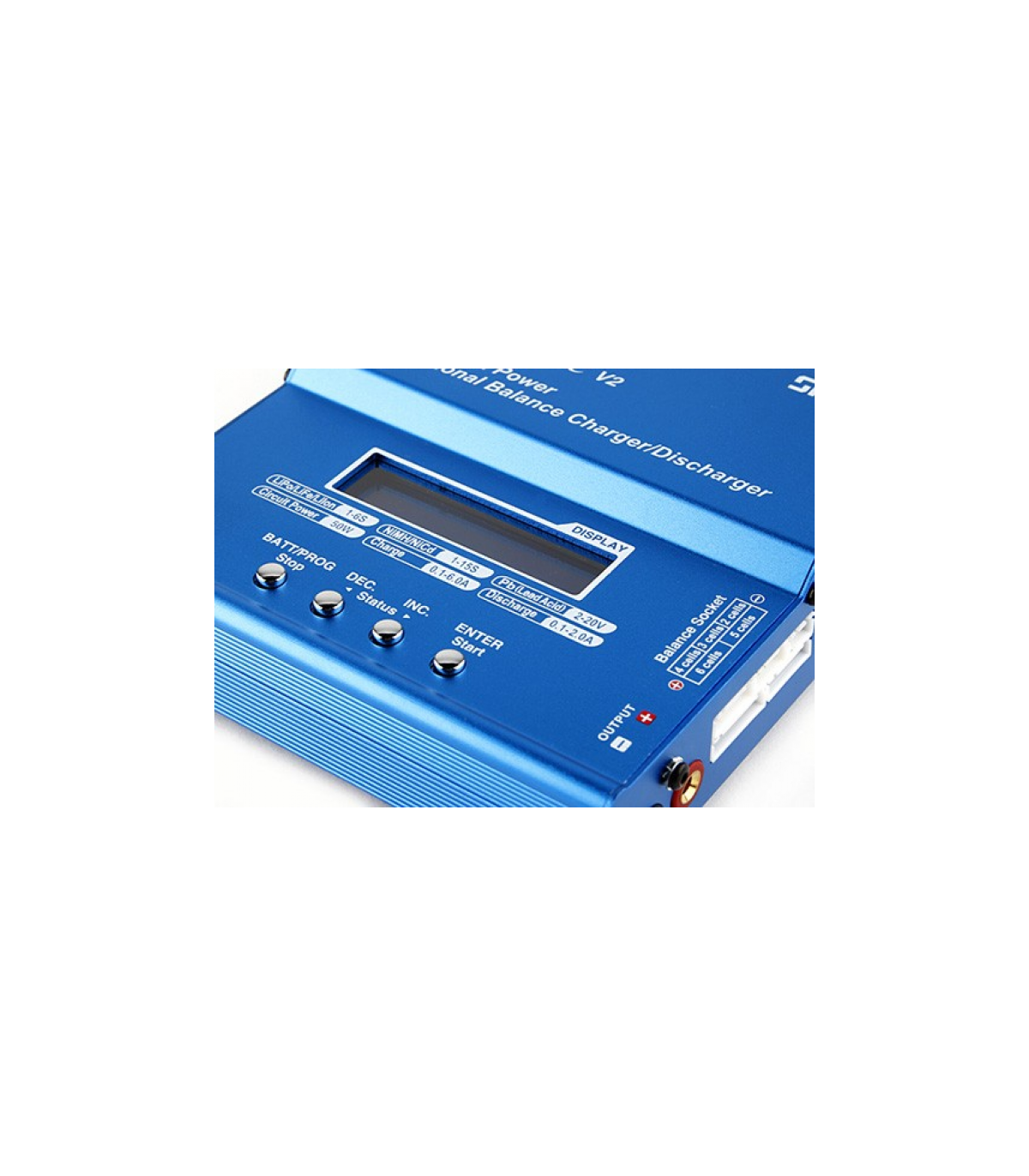

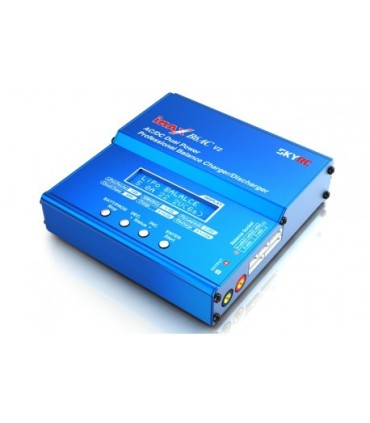

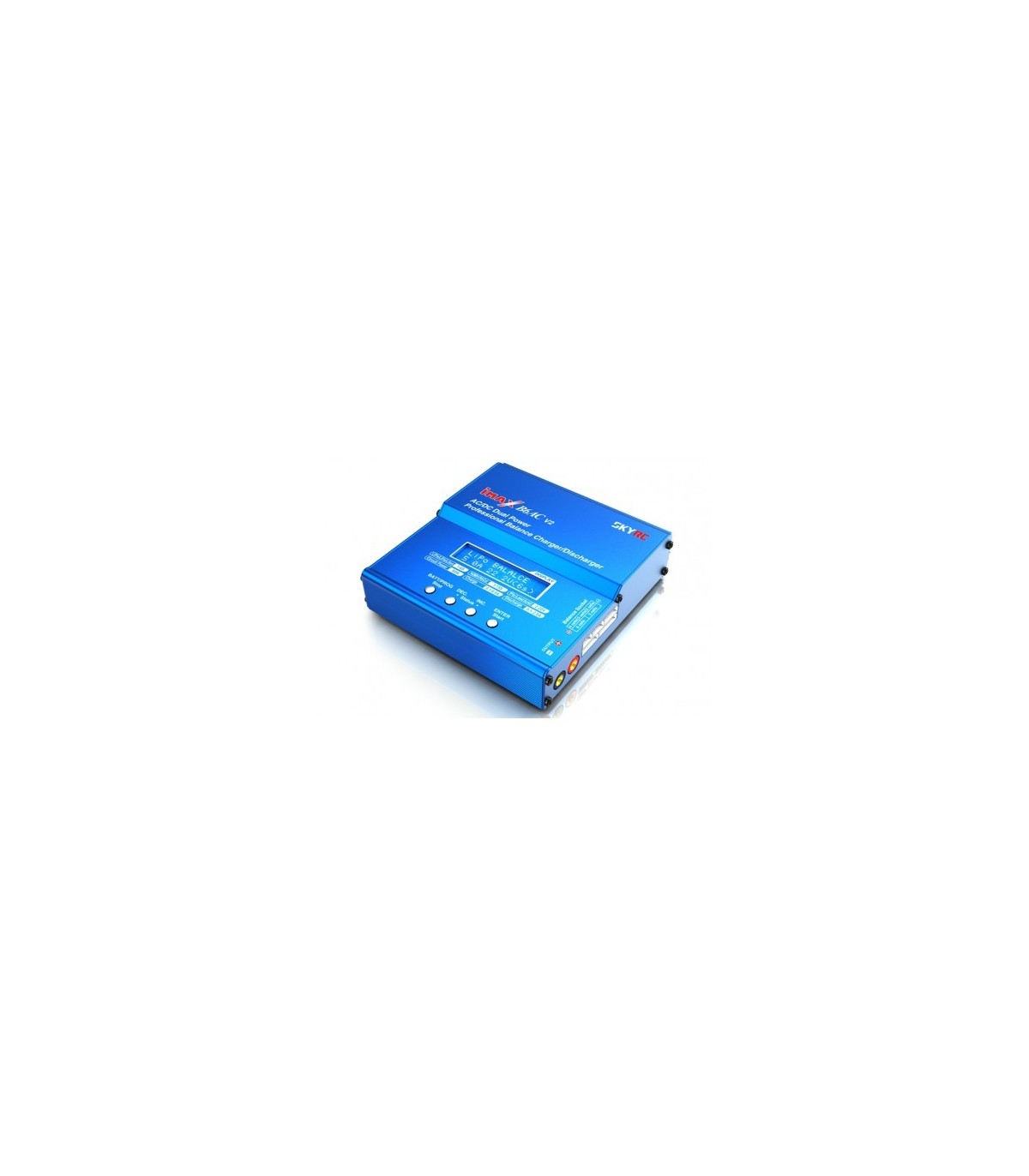

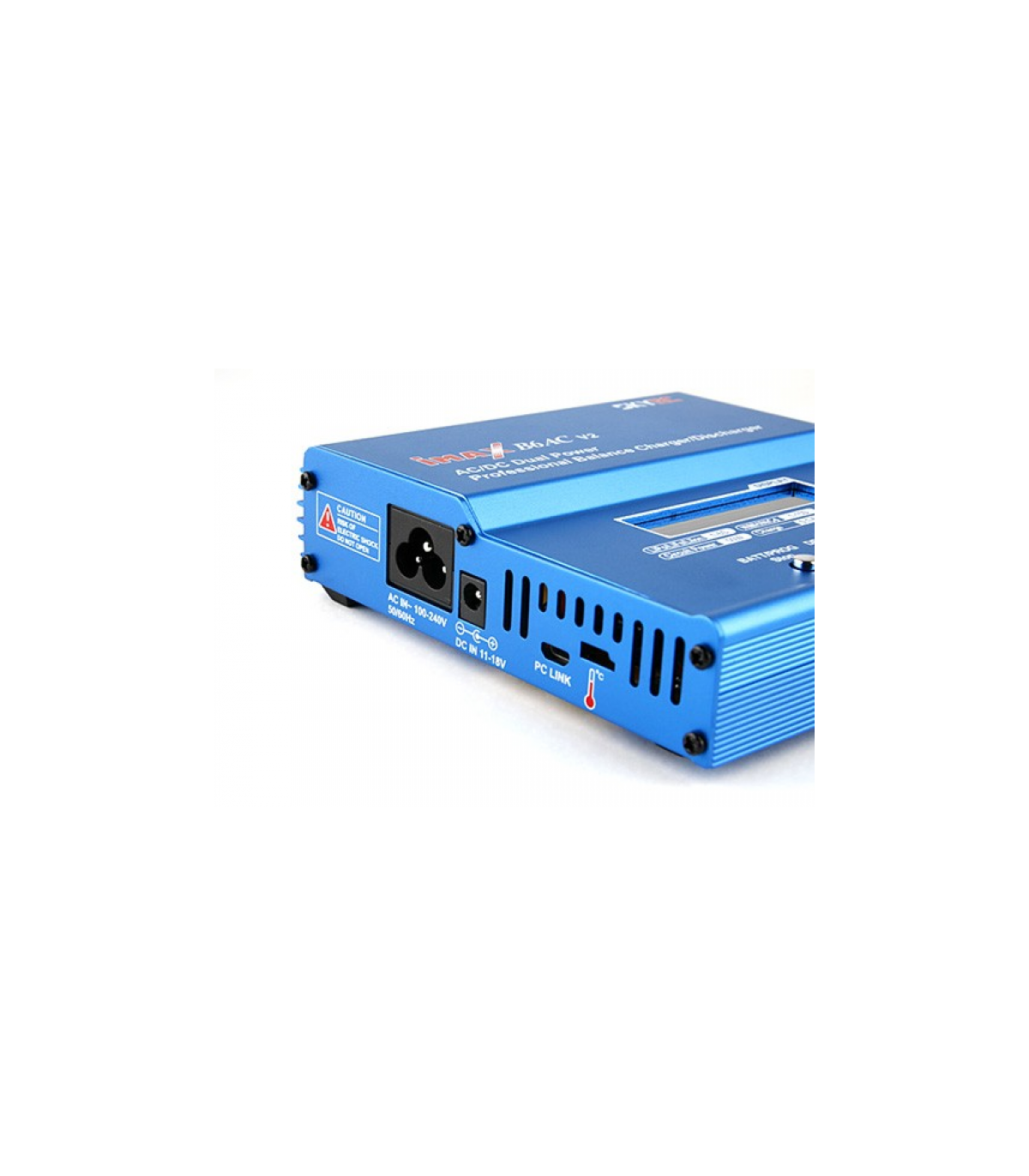

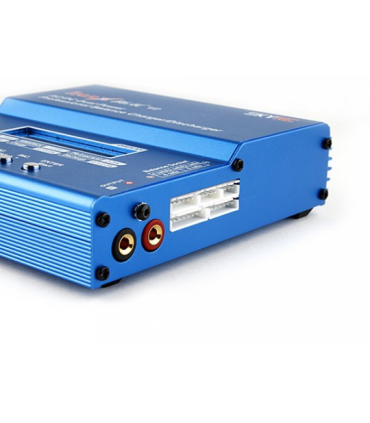

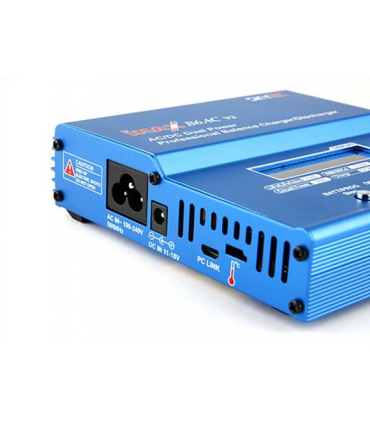

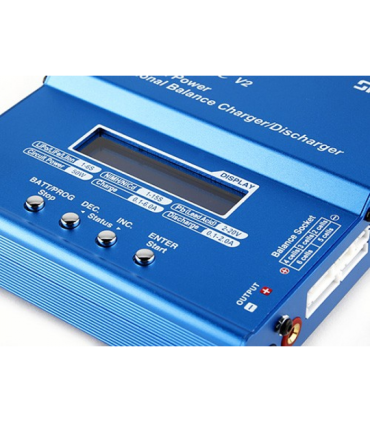

Charger, SkyRC iMAX B6AC V2
The charger iMAX B6AC V2 AC/DC is ready to use anywhere, since it can be powered by mains or car battery and it charges all types of batteries utiklisés model. Its load power is 50 W and it manage the battery LiXX, 1 to 6 elements, and the batteries NiXX, 1 to 15 elements.
Measure battery lithium
Connect the charging plug of your LiPo battery/LiIon/ LiFe on the charger and you can use it as an instrument for measuring the voltage of each element.
Measurement of the internal resistance
You can also use this charger to measure internal resistance of each element of your rechargeable Lithium batteries to determine the state of health of your battery.
Voltage control charge termination (TVC)
You can adjust the tension of the end of the load for each battery type ::
LiPo 4.18 V-4.25 V (Default 4.20 V)
LiIo 4.08 V-4.20 V (Default 4.10 V)
LiFe 3.58 V-3.70 V (Default 3.60 V)
Connection to a PC
You can check the voltage of the pack and of each item and other data during the charging process. You can also view the load curve in real-time. Commands to the charger or upgrade its firmware using the software "Charge Master" which can be downloaded for free on the website SKYRC.
Main features :
- Power supply : AC 100 - 240V / DC 11 - 18V
- Power : Max. 50W load, Max. 5W discharge
- Charge current : 0.1 - 6.0 A
- Current déxcharge : 0.1 - 2.0 A (5 Watts)
The current balancer : 300mAh/cell
- Number of cells NiMH/NiCd : 1 - 15
- Number of cells LiPo/LiFe/LiIon : 1 - 6S
- Rechargeable battery lead-acid : 2 to 20V
- Weight : 626g
- Dimensions : 135mm x 144mm x 36mm
