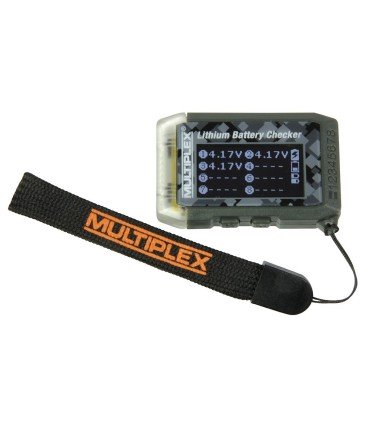

Mutliplex battery tester + location

This Multiplex product is much more than just a battery controller! 3 Devices in 1 only!

- Lithium battery tester:
It can display the voltage of each cell of the polymer lithium battery (suitable for all lithium batteries) and indicate the remaining battery capacity as a percentage.
The side indicator lights give you the information in a few seconds if the battery is full, at full moity or empty.

- Location beep (Model finder):
The battery tester uses the built-in sensor to detect if the model is in muvement or lying somewhere.
By means of the adjustable threshold, an acoustic signal can be emitted after one minute of immobilization, so that its pattern can be found in tall grass or off the field.

- Low voltage warning light:
The voltage controller can remain in the model in flight and will give an audible and visual warning when the cell voltage threshold is reached.
The default is 3.50 volts. That way, when the model goes low, it's easy to see if the battery will be empty soon.

- Information display:
Thanks to various display screens, you can get a lot of information about the battery at a glance.
Total voltage, residual capacity, cell drift and cell state.

For right-handed and left-handed:
- In the settings menu, rotate the screen display to adjust the usage.

Technical specifications:

- Dimensions: 54x34x11mm
- Weight: 16g
- Battery type: LiPo, LiHV, LiIon, LiFe
- Battery voltage: from 1 to 8S Li-xx
- Resolution 0.01V
- Temperature range: 10~45°C
- Input voltage: 2.5-5 V per element
