FLIR camera DUO R

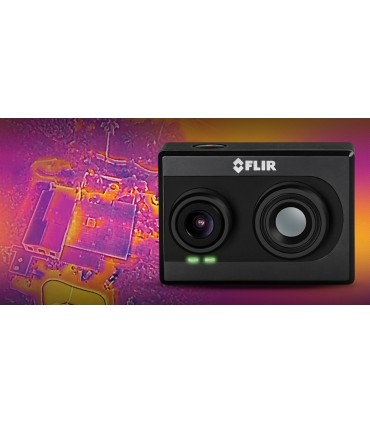

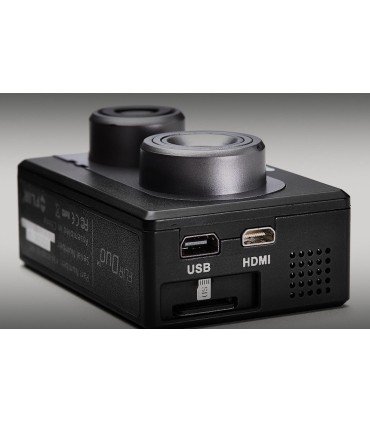

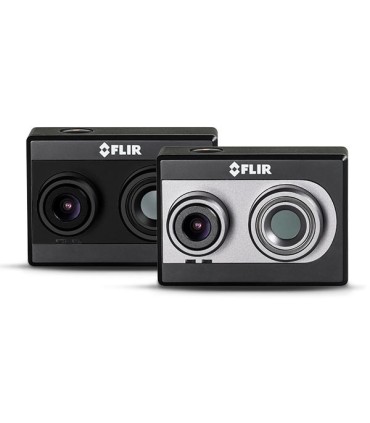

The FLIR DUO R is a thermal imaging camera radiometric in a mini format for easy integration on unmanned aerial vehicles.

With a thermal sensor with a resolution of 160 x 120 pixels coupled to a sensor visible 1920 x 1080 pixels. This version radiometric stores the thermal images with the integrated temperature measurement in each pixel, ideal for your thermal inspections that require precision.

With the application Flir Tools available on smartphones (iOs and Android), you can easily set up your camera on the ground before your volume Your thermal images and visible will be directly saved in the microSD card inserted in the camera.

You will have the opportunity to feed into the camera 5 to 24 V and you can drive it with two PWM inputs.

Technical characteristics

Brand : FLIR

Model : DUO R

Thermal imager : uncooled microbolometer vanadium oxide

Sensor resolution : 160 × 120 pixels

Objectives : 57º x 44º

Spectral band : 7.5 to 13.5 µm

Frequencies of thermal images : 7.5 Hz (NTSC) ; 8.3 Hz (PAL)

Accuracy of temperature measurements : +/-5 ºC or 5 % of the measured value

Resolution of the camera visible : 1920 × 1080 pixels

FOV of the camera visible : 90º

Dimensions : 41 × 59 × 29,6 mm

Weight : 84 grams

Delivered without a drone.
