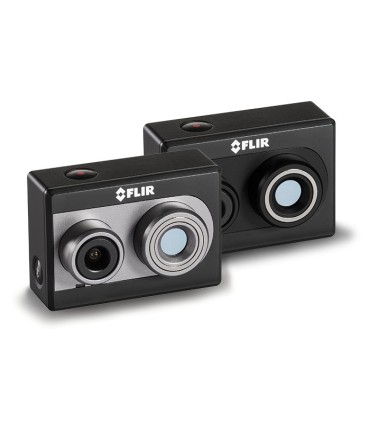

FLIR thermal imaging camera Duo

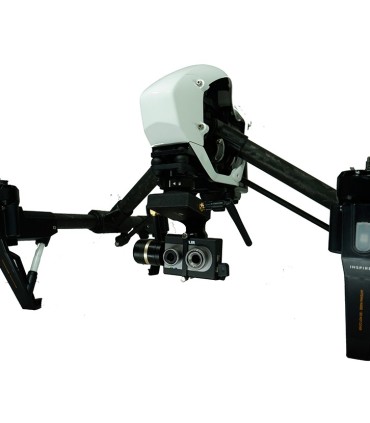

The FLIR Duo is a thermal and visual camera designed specifically for aerial drones thanks to its ultra-compact size and lightweight.

The interest in this camera lies in the fact that it has a double objective (sensor 1080p video, and thermal sensor) for an optimal rendering.

This thermal imaging camera offers interesting features such as recording on a microSD card, the remote control or the improvement of the image using MSX.

This version of the FLIR Duo is non-radiometric, there is also the FLIR Duo R with its module for radiometric, allowing a precise analysis of the image pixel-by-pixel.

Technical characteristics :

CAMERA

• Resolution(s) video thermal imaging Camera with 160 x 120 pixels / Camera : 1920 x 1080 pixels
• Operating temperature 0°C to 50°C
• Size 41 × 59 × 29.6 mm
• Weight 84 grams
• Power supply 5-26V
• Thermal imager Uncooled VOx Microbolometer
• Frequency 7.5 Hz (NTSC); 8.3 Hz (PAL)
• Other specifications are USB Connectivity : Power supply, analog video output, connection PWM, and MAVLink / Storage on a microSD card
• Video output Micro-HDMI (1080p) ; Mini-usb (analog)
• FOV thermal imaging Camera : 57° x 44° / Camera : 90°
• Spectral band 7.5 – 13.5 µm
• Image optimization for sUAS Yes
• Picture-in-Picture (PIP) Yes
• Storage temperature -20°C to 60°C

Content of the product :

1 x FLIR thermal imaging Camera Duo

1 x power Cable, and transfer video
