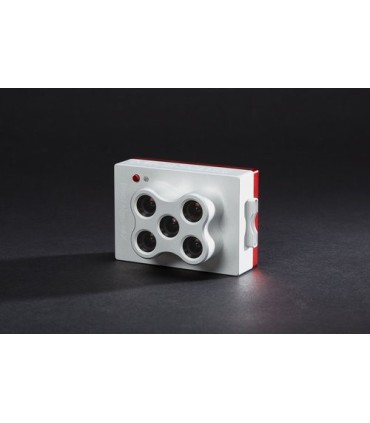

RedEdge MX

The sensor multispectral RedEdge MX in Micasense is a tool to aid decision-making by providing information on the phytosanitary state of planting, the vigour of the plant and to identify the areas affected by the disease in order to optimize fertilizer use and reduce over-treatment. This sensor success at the Red Edge M.

The RedEdge MX has been designed to be durable and robust thanks to its new aluminum cover which gives it a durability and a resistance to heat increased (that is, operates at temperatures up to 50°C). It is equipped with a new DLS 2 for a better calibration of the light. Thanks to its five spectral bands, it generates index of vegetation and color images in a single volume It has been designed for easy integration with any drone.

A reflection of the World offers adaptations of this sensor on different brands of drones.

The kit includes:

- RedEdge MX

- DLS 2 with built-in GPS

- Panel reflectance calibrated

- Protects objective

- Etui

Features:

- Mass: 231,9 grams

- Dimensions: 8.7 x 5.9 x 4,54 cm

- External connection: a 4.2 CC - 15,6 VDC, 4W nominal, 8W peak

Band - spectral: blue border, green, red, near-infrared global shutter, and narrow band)

- RGB output: global shutter, which is aligned on all bands

- Speed of capture: 1 capture per second (any bands), RAW 12bits

- Resolution: 8cm-per-pixel (per band) at 120m AGL

- Field of vison: the HFOV of 47.2°

- Shoot Option: timer, overlap, external triggering, capture mode manual.
