Carbon wing wrench 13,7mmx12,5mmx1000

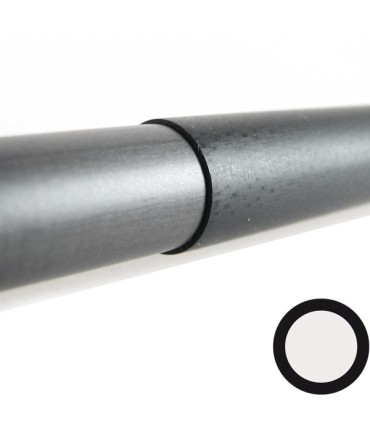

The wing connector system, consisting of a GFRP sleeve tube (outside) and a CFRP junction tube (inside), is of high quality and fits precisely. The two tubes slide into each other and are therefore telescopic.
Manufactured according to the roll packaging process, the tubes use a high-quality epoxy resin matrix and a unidirectional glass and carbon fabric for reinforcement. The tubes combine lightness, high strength and excellent corrosion resistance.
Dimension:
GFRP tube (outer tube) Outer Ø 13.7 mm, wall thickness 0.6 mm
CFRP tube (inner tube) Outer Ø 12.5 mm, wall thickness 0.9 mm
Tolerance: approx. - 0.3mm
Weight: approx. 113 grams
Application:
Wing connector system for model aircraft, e.g. it is used to plug the wings into the fuselage.
This system can only be delivered complete, individual tubes are not available on their own.
-
