Carbon wing wrench 31.2mmx0.6mmx800mm 30x1x800mm

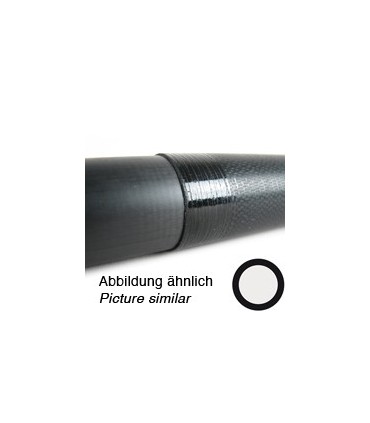

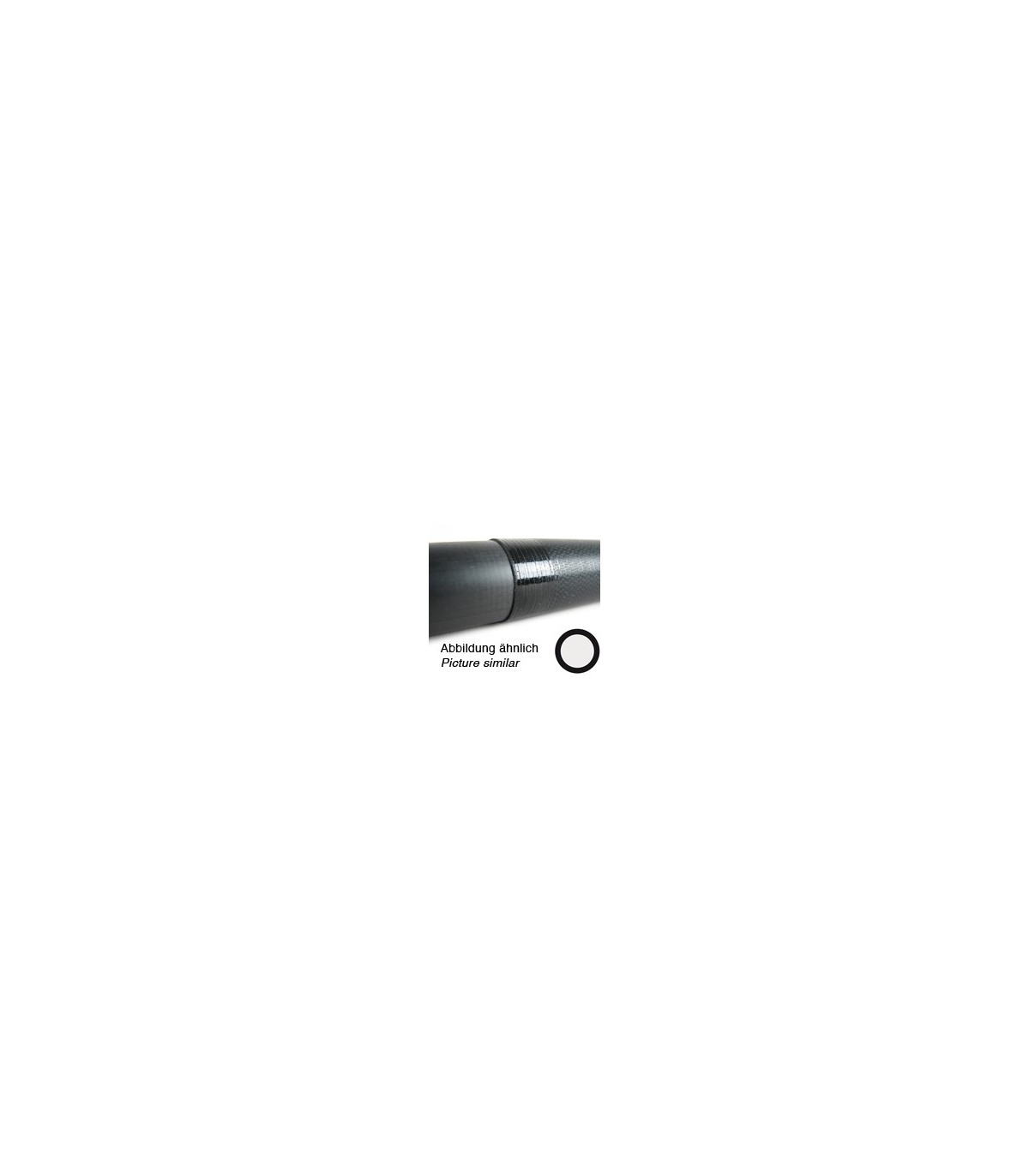

The Wing-connector system consists of a GFRP wing junction tube (outside) and a CFRP wing tube (inside), they are of high quality and fit precisely. The GFRP tube fits completely on the CFRP tube, so the connector wing is telescopic.

The GFRP outer tube has a rough grooved surface that ensures better adhesion in the fuselage and wing. The CFRP inner tube is ground to fit and thus offers a perfect fit in the GRP outer tube.

Dimension:
GFRP tube (outer tube) Outer Ø 31.2 mm, wall thickness 0.6 mm, length 800 mm
CFRP tube (inner tube) Outer Ø 30.0 mm, wall thickness 1 mm, length 800 mm,

mass=about 170gApplication:

Wing connector system for large aircraft models, e.g. it is used to plug the wings into the fuselage.
The Wing-connector system can only be delivered complete, individual tubes are not available.

Feature:
Lightweight, high strength, excellent corrosion and heat resistance and electrical conductivity.
