ELISTAIR LighT Station-ground

Derived from the SafeT, the LighT is a station-to-ground making your drone tethered and extremely tough.

Request a quote

Read moreShow less

Notify me when available

Love0

Add to compare0

Add to wishlist

Description

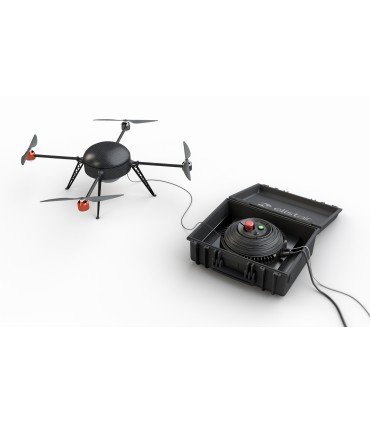

Unique product and already well known, from the French savoir-faire in the drone professional. This product allows you to transform a drone classic drone tethered, in particular for reasons of safety and/or autonomy. It allows you to stay in flight for several hours, for example for surveillance missions. The drone turns into a turret video powered non-stop by the ground, all by fetching the data via the same " umbilical ". This product is derived from the product Safe-T. It is more compact than its "big brother" issues a bit less energy and has less length of cable (50mètres instead of 100m).

Technical characteristics :

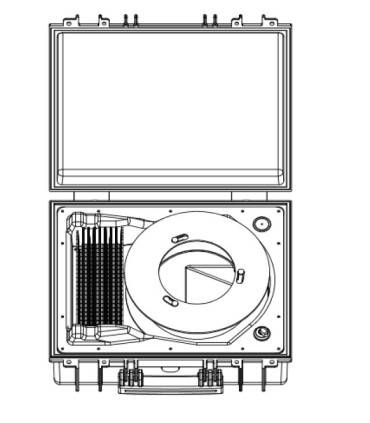

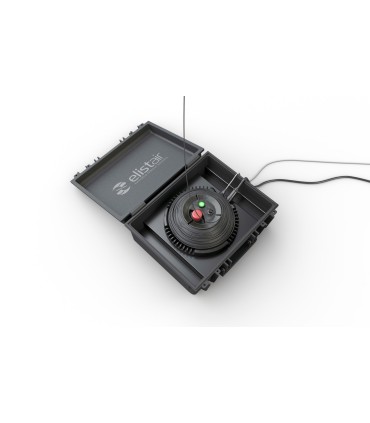

Ground Station
Dimensions	475 x 415 x 211 mm
Weight	12 kg
Micro-Tether Management	Manual
Power Input	230 VAC, 50 Hz, 10 A, 2300 W minimum
Built-in protection	Fuse
Connectivity	T-Monitor Android app (WI-fi)
Handles	1

Air Module
Weight	600 g
Dimensions	150,75 x 88 x 44 mm
Output voltage	23-25 VDC
Power Drone connectors	AS150 Red Female XT150 Black Female
Cable minimum section	6 mm2 1000W 4 mm2 500W
Safety battery connector	XT90 Male (request year WT90 female with anti-spark)
Safety Switch	Included
Max continuous Power	1000 W
Peak Power 10s	1300 W
Peak Power 2s	1500 W
Safety battery	6s 3Ah 35C
Operating temperature	-10/35°C

Micro-Tether
Length	50 m
Diameter	3 mm
Weight	600 g
Tensile strength	100 daN

Data Transfer
Data input and output connectors	Ethernet RJ45 (Ground station and Air Module)
Data speed	80 Mb/s

Hand interfaces
Power	Ground Station	Input	Cable – E-Type		220-250 VAC / 50-60 Hz
Power	Air Module	Output	AS150 Red Female XT150 black Female		[22-25] VDC / 1 800 W max continuous
Power	Air Battery Module	Input		XT90 Male (with anti-spark)
Data	Air Module	Input	RJ45 Ethernet		80 Mb/s
Data	Air Station	Output	RJ45 Ethernet		80 Mb/s
