Matrix 600 Pro

Drone DJI retaining the characteristics of the Matrix 600, while optimising its flight performance, as well as the payload. The arms and the antennas are already pre-installed on the drone in order to reduce the time of preparation before flying. Its modular design facilitates various improvements and other installations of additional modules.

The chassis is equipped with the latest technologies developed by DJI as the flight controller A3 Pro : triple redundancy modular, algorithm, software, for flights secure, and a in flight stability, remarkable (+compatibility D-RTK GNSS), the transmission system HD Lightbridge 2 to perform the streaming HD live, the smart batteries and the system of management of battery giving a battery life of 32 minutes to empty, and 16 minutes with a load of 6kg (maximum payload).

All of the platforms/cameras Zenmuse is compatible with the original DJI M600 Pro giving the drone a great capacity for adaptation from the point of view of software and hardware, especially with the SDK and the hardware manufacturers, third parties who make the M600 Pro an ideal tool for aerial photography professional and industrial applications such as inspections, various.

Features :

DRONE

• Reference : DJI M600 Pro
• Brand : DJI
• Chassis Type : Hexacoptère
• Dimensions : 1668 x 1518 x 759 mm
• Materials : Carbon / ABS
• Stabilization Module GPS : Yes
• Weight With 6 TB47S 9.5 Kg / with 6 TB48S 10 Kg
• Motors DJI 6010 E2000 Pro
• Flight controller DJI A3 Pro
• Flight time : 16 to 38 minutes, depending on the module board
• Propellers : DJI 2170
• Battery TB47S 6S 4500 mAh 22.2 V / TB48S 6S 5700 mAh 22.8 V
• Maximum speed 18 m/s (without wind)
• Max speed in descent 3 m/s
• Max speed of climb 5 m/s
• Operating Temperature -10 to +40°
• Color Black
• Accuracy of the stationary Vertical: ±0.5 m Horizontal: ±1.5 m
• Speed max. on the different axes Pitch: 300°/s Yaw: 150°/s
• Tilt max tilt 25°
• Altitude max. flight 2500 m
• Maximum resistance to the wind 8 m/s
• Load 6 Kg maximum payload)

NACELLE

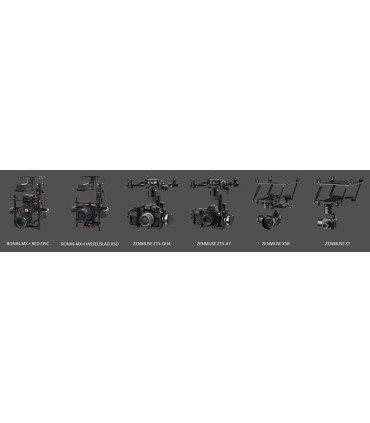

• Model Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4

REMOTE control

• Frequency(s) 5.725 GHz to 5.825 GHz / 2.400 GHz to 2.483 GHz
• Radio range is 3.5 km (outdoor and unobstructed)
• Video Transmission 3.5 km
• Built-in display No (smartphone or tablet required)
• Applications radio DJI Gb
• EIRP of 13 dBm @ 5.8 G / 20 dBm @ 2.4 G
• Video output, HDMI, SDI, USB
• Power 6000 mAh, 2S LiPo
• Use double operators Yes via Host mode / slave of the two remote controls

CHARGER

• Power 600W
• Voltage (outbound) 26.1 V
• Time burden of 92 to 110 minutes, depending on the battery
• Model MC6S600
• Compatibility TB47S/TB48S

Content of the product :

• 1 x Frame DJI Matrix 600 Pro (with A3 Pro and Lightbridge 2)
• 2 x Feet with the landing gear
• 2 x landing gear
• 2 x Springs
• 1 x Remote control
• 6 x Batteries TB47S
• 1 x Hub charging 6-channel
• 1 x leather Case (foam interior
• 1 x power Cable
• 2 x charging Cable RC
• 1 x micro USB Cable
• 6 x System lock arms
• 1 x Batch of adhesive
• 1 x Lot stickers batteries
• 1 x pack of screws (M3×5.5 M3×8 M3×8 (Thumb), M3×12 )
