F722 AIO 35A Brushless

This All in One, created by Beta FPV is perfect for your toothpick with its flight board and integrated ESC, the whole is compact!

Product content:

• x1 BETAFPV Toothpick F722 2-6S AIO Brushless FC 35A (BLHeli_32)
• x1 Pigtail Cable (XT60U)
• x1 capacitor
• x1 6pin connector for DJI Digital VTX
• x4 Screw M2x10 mm
• x8 Nuts M2

Technical specifications:

Flight controller:

• Item: F722 35A AIO FC (BLHeli_32)

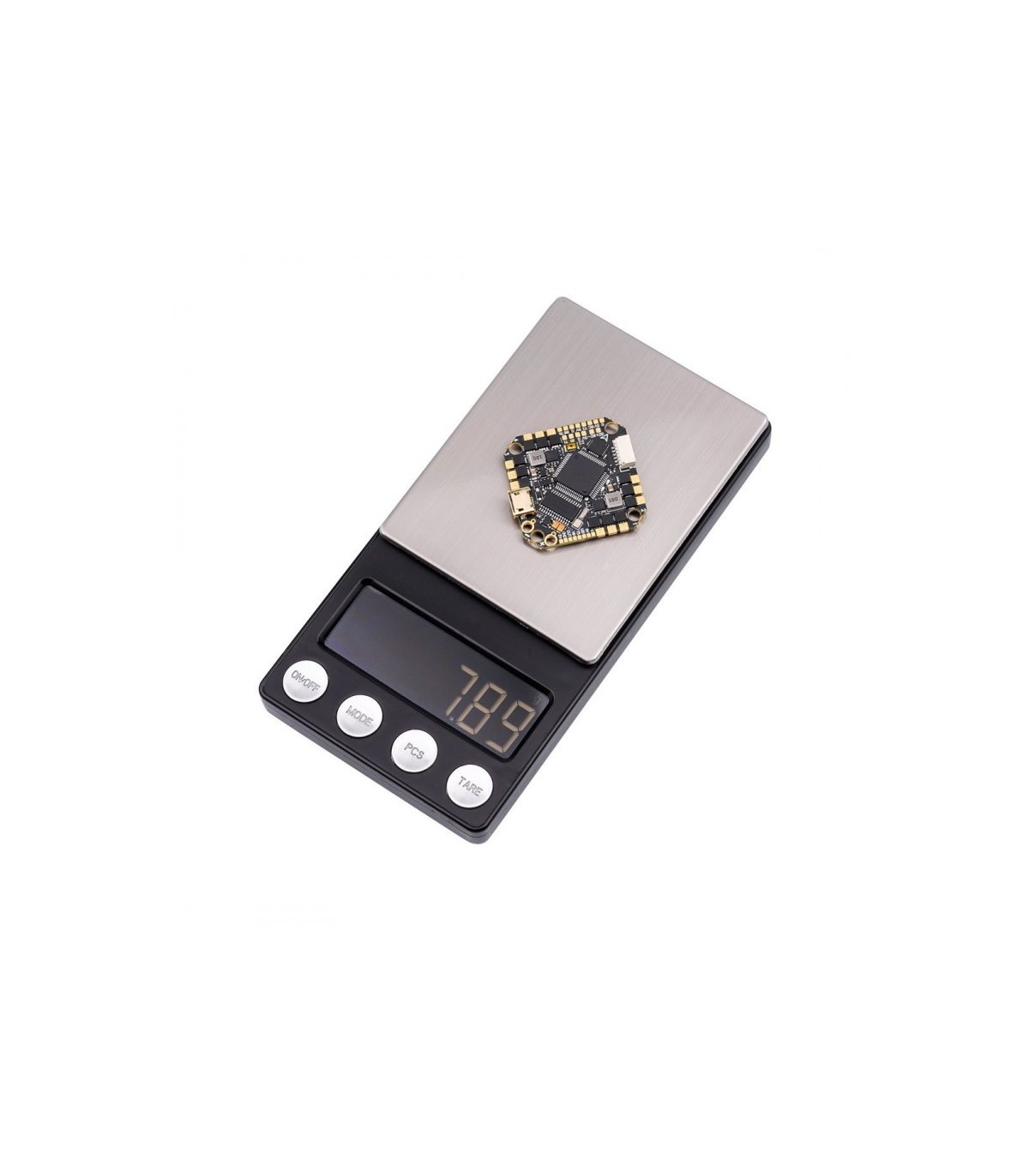

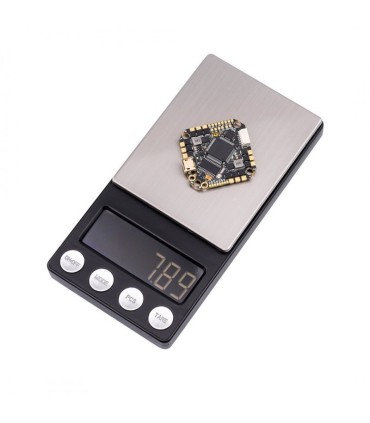

• Weight: 7.89g
• Processor: STM32F722RET6
• Six axis: MPU6000 (SPI connection)

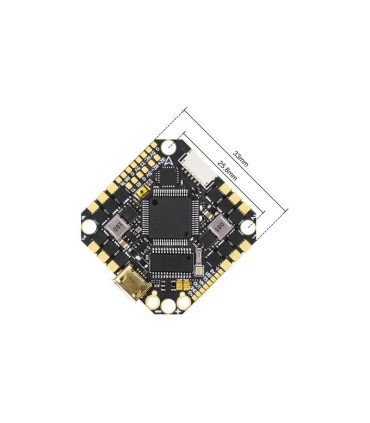

• Mounting hole size: 26mm x 26mm
• Firmware version: betaflight_4.2.x_BETAFPVF722
• OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
• Support for programmable LEDs like WS2812...
• Built-in current sensor

• Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Receiver: supports Frsky XM/XM+/Futaba receiver/Flysky receiver/DSMX receiver/Crossfire TBS receiver (requires external connection)
• Input Voltage: 2S to 6S Lipo
• Continuous current: 35A
• Current in peak: 40A
• Firmware: BLHELI S 32
• Indicators: 2 indicators: Receiver (green) / Flight control power supply (red)
• Capacity: CS | 5 * 10 * 13mm|470µF|35V
• Connector: 80mm 14AWG silicone cable with XT60
• Recommended engines: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
