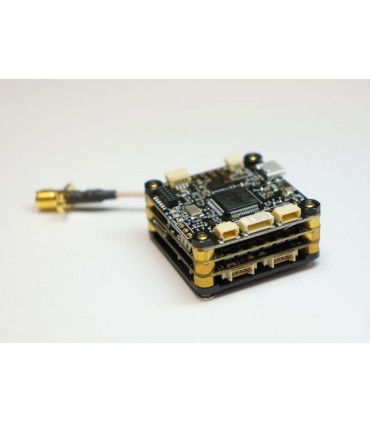

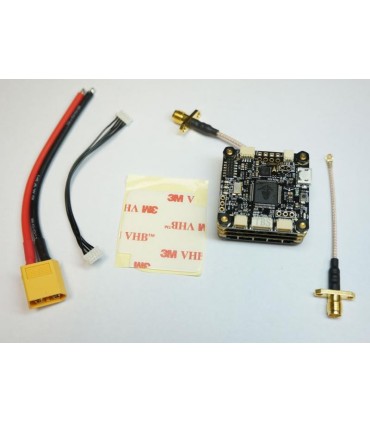

Powercube V2 ESC 4 in 1 20A

Find, stacked in a compact tower, a card of flight Hummingbird F3 V2.0, ESC 4 in 1 20A DShot600 and a map FPVision OSD/VTX. The latter replaces the PDB V2 by integrating a VTX equivalent to the Unify Pro switchable from 25 to 800 mW !

The Hummingbird V2.0 is a card of theft F3 based on an IMU MPU6000 8kHz, supporting connections to the SBUS, PPM, or Spektrum, it is compatible Betaflight, Cleanflight and Baseflight.

The ESC 4en1 20A Bulletproof to bear in 2 to 4S with a continuous current of 25A and a burst to 45A, it is compatible DShot600.

The card FPVision OSD/VTX brings together the best of TBS, the Unify Pro, the OSD CORE PRO, a current sensor 100A and the PDB V2 distributing 4A on 5V and 0.2 A at 12V. It incorporates a switch for two cameras FPV, the power supplies for camera and VTX are filtered to guarantee an image without interference.

A concentrate of technology in a tower ultralight of 36 mm, and is scalable, you can replace the layers in the functions of your configurations !

Technical characteristics

-Brand : TEAM BLACK SHEEP

-Model : Powercube V2 ESC 4en1 20A

-Flight controller : STM32 F3, MPU6000 (compatible Betaflight)

-Power supply for camera and VTX regulated, and filtered

-ESC : 4en1 Bulletproof 20A supports 25A continuous (each way) and 45A in burst, flashed DShot600

-Operating voltage (Powercube and ESC) : 2 to 4S

-PDB : 120A continuous

-Current sensor : 100A (250A peak)

-Dimensions : 36 x 36 x 22 mm (l x w x h)

-Weight : 56 g cables and connectors included
