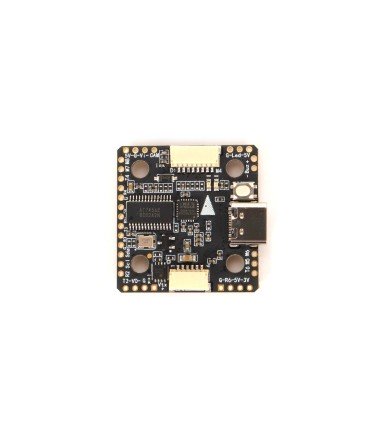

Holybro Kakute H7 mini flight map
Holybro H7 mini flight map
€90.99
(tax incl.)
Love0
Add to compare0
Add to wishlist
The Holybro Kakute H7 flight controller is packed with features including built-in Bluetooth, two 4-in-1 plug and play ESC ports, HD camera jack, barometer, OSD, 6x UART, full Blackbox microSD card slot, 5V and 9V BEC, easy soldering layout and much more.
The Kakute H7 builds on the best features of its predecessor F7 and further improves the hardware components and layout. With the additional built-in Bluetooth chip on board, you can perform Betaflight setup and adjustment wirelessly on your phone with the SpeedyBee Android and IOS app. The Kakute H7 is ready for the DJI HD. It has an easy plug-and-play port with a built-in 9V regulator designed to power your HD video transmitter like DJI/Caddx FPV aerial unit and Caddx Vista while supporting analog system.
It has 6 dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), as well as a full microSD card slot for virtually unlimited Blackbox data recording. Two plug-and-play 4in1 ESC connectors, allowing easy plug-and-play support for x8 Octocopter configuration and keeping it simple and clean. The built-in BetaFlight OSD makes it easy to display important information on your FPV display, such as battery voltage, flight time, warnings, RSSI, intelligent audio functions and more. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for GPS/external magnetometers
Technical specifications:
- Brand: Holybro

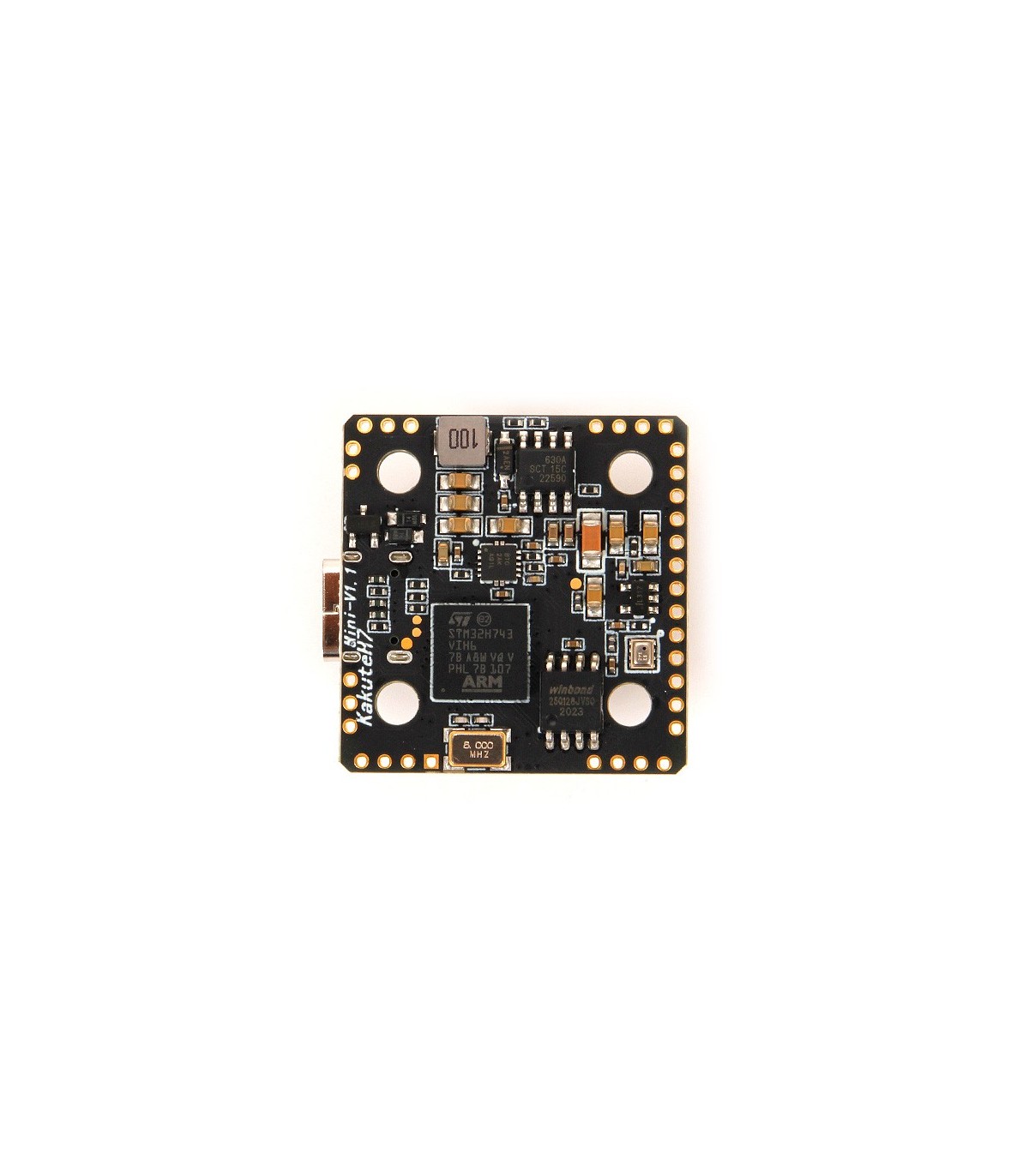

- processor: STM32H743 32 bits running at 480 MHz
- Model no.: MPU6000
- Barometer: BMP280
- OSD: AT7456E
- On-board Bluetooth chip: ESP32-C3
- Compatible with SpeedyBee IOS and Android apps
- Note: The on-board Bluetooth is configured to turn off automatically when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
-6x UART (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
-9x PWM outputs (8 motor outputs, 1 LED)
-2x JST-SH1.0_8pin port (4in1 ESC, compatible x8/Octocopter)
-1x JST-GH1.5_6pin port (for HD system like Caddx Vista & Air Unit)
-Battery input voltage: 7V to 42V
-BEC 5V 2A Cont.
-BEC 9V 1.5A Cont.
-Mounting: 30.5 x 30.5mm/hole4 mm hole with Φ3 mm grommet
-Dimensions: 35x35mm
-Weight: 8g

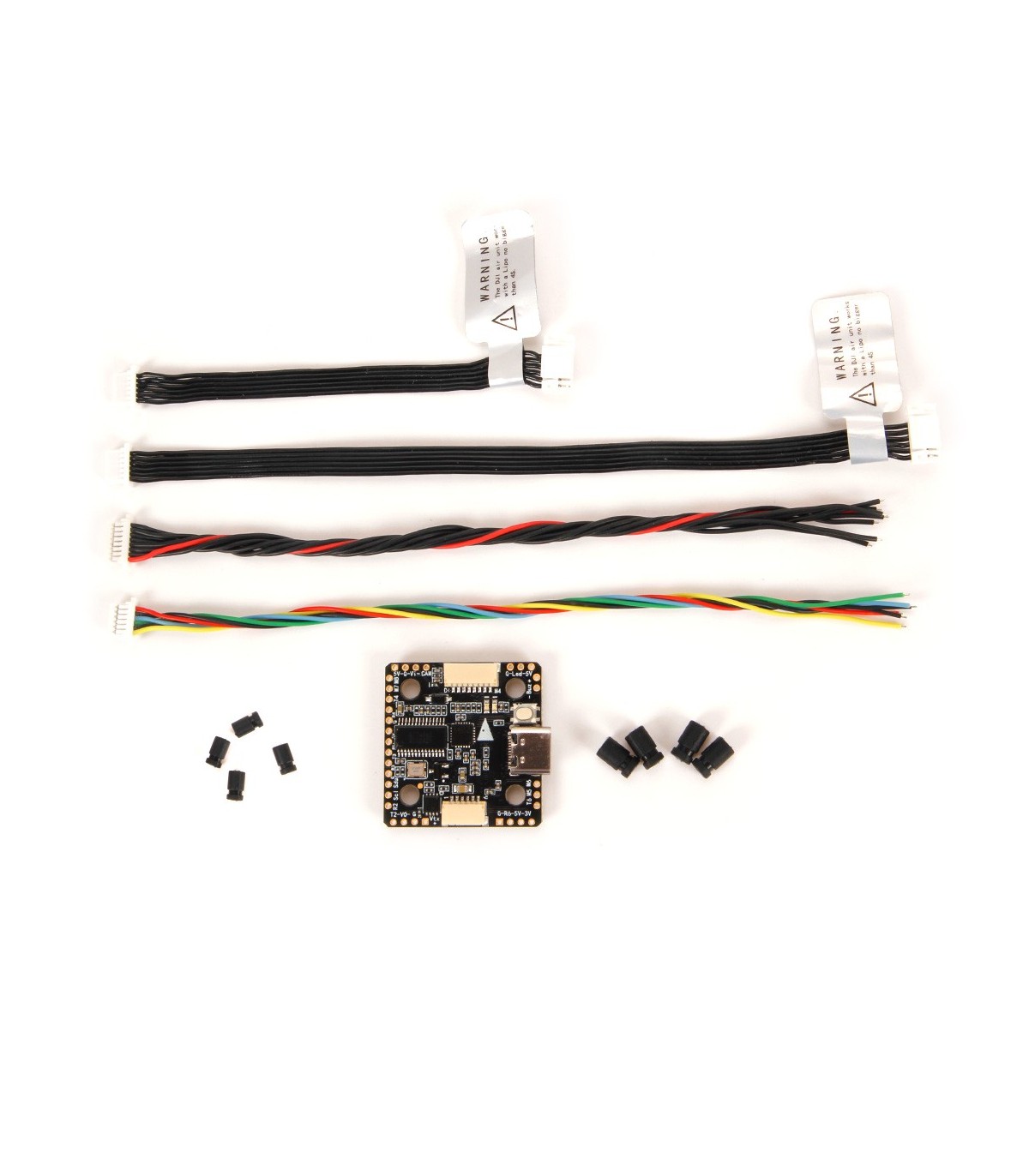

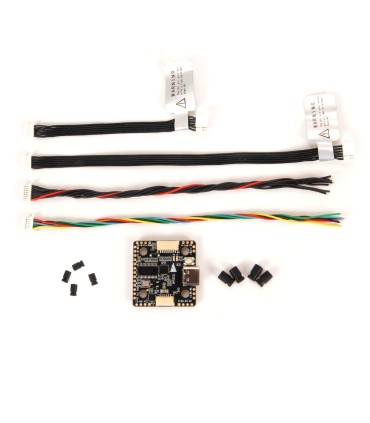

Product content:
-1x H7 Mini FC Card

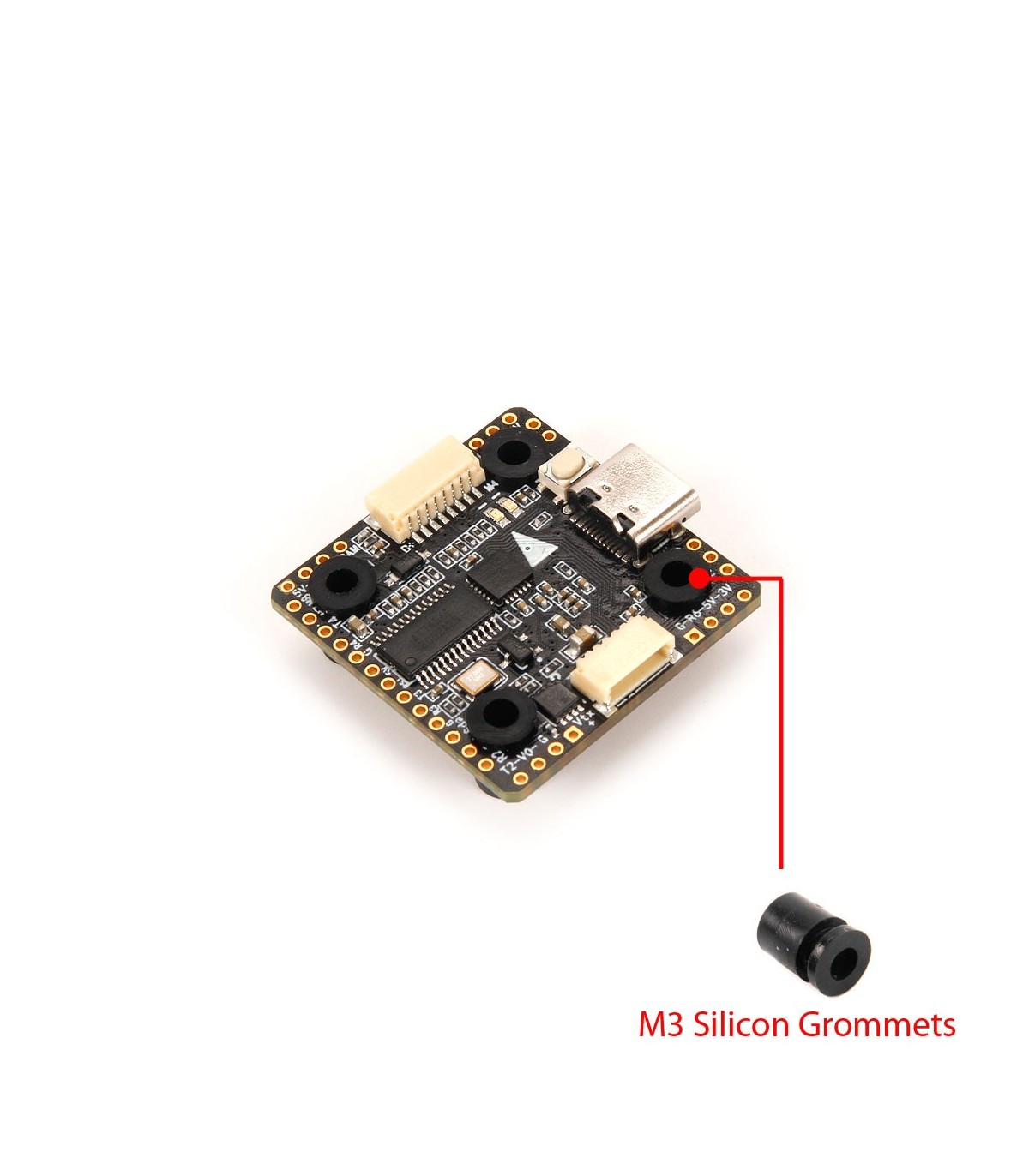

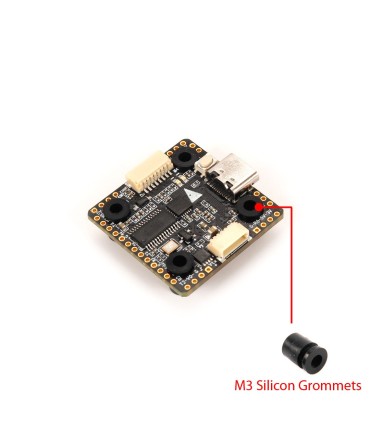

-4x M3 Anti-vibration silicone grommet insert
-2x JST SH 8 pin 150 mm cable
-1x JST GHR 8 pin to JST GHR 6 pin 80mm cable (for DJI/Caddx HD systems)
-1x JST GHR 8 pin to JST GHR 6 pin 150mm cable (for DJI/Caddx HD systems)
