€39.00
(tax incl.)
Antenna SL Pentalobe omnidirectional circularly polarized RHCP.

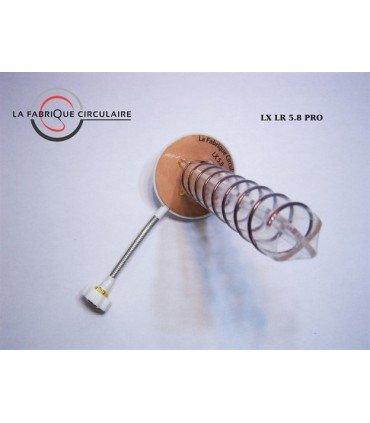

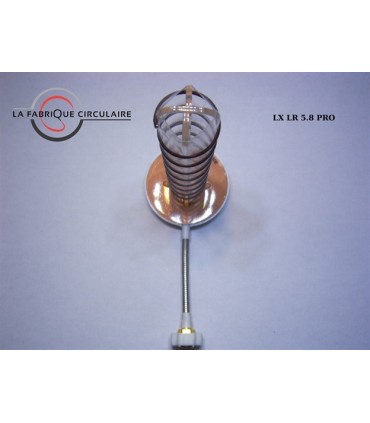

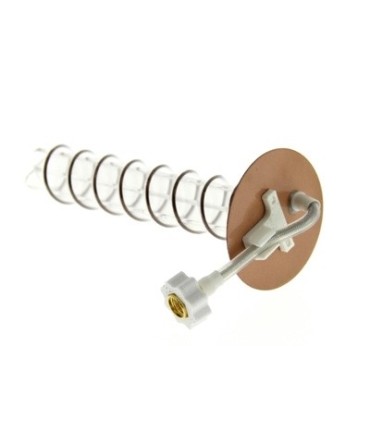

Antenna LX-LR Pro Manufactures Circular 5.8 GHz RHCP
Directional antenna circular polarization RHCP high gain suited to the Long Range.
€50.00
(tax incl.)
Love0
Add to compare0
Add to wishlist
With a gain of 12.3 db, it will allow you to optimize your reach video.
Can be used on a tracker antenna or in combination with an omnidirectional antenna on one RX diversity.
Reception Angle of 38° (60° usable), ideal for professional use or Long Range.
Features LX LR PRO 5.8 GHz
-8,25 Towers
-Bandwidth : 5500 to 6000 MHz
-Gain : 12,3 dBi/50 Ohms
-VSWR<1.2 (RL<-20dB)
-Circular polarization type RHCP
-Coverage : 38° (60° usable)
-Coax semi-rigid 18 GHz
-Dimensions : height : 11 cm
diameter : 5.6 cm
-Weight : 28 g
-Use VRX
-Connector : SMA
Comments (0)
No customer reviews for the moment.
8 other products in the same category:
Patch antenna TBS directional, SMA (110°) LHCP receive video FPV.
The antenna LX PRO is the antenna that is ideal for your receivers. Directive with a coverage of 90°, usable (but a maximum gain at 60°), it is still omnidirectional at short distance (50-100m).
Antenna stick for video transmission suitable for use in small fixtures.
