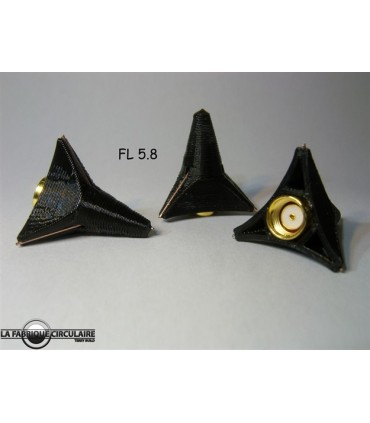

Antenna FL LaFabriqueCirculaire 5.8 GHz SMA

Omni-directional antenna has linear polarization for the flight proximity.

Strengths : strength and compactness (VTX)

Without reaching the performance level of the antenna to higher gain, it will seduce you for an intensive use in drone racer both for speed and for the addicted. It is an antenna with linear polarization, there would be a loss of 3 dB, which coupled to an antenna RX in circular polarization, but the best performance was observed with a Pentalobe (thus circular polarization) at the RX. We can therefore imagine a couple in FL at the VTX and LX, LX-LR at the RX !

Angle of coverage 360°.

It connects directly to the video transmitter via the SMA connector without extension cable to avoid losses.

Sold by two.

Technical characteristics

-Weight : 3,7 gr
-Dimensions : 20x23x23mm
-Gain : <2,1 dBi
-Bandwidth : 5645-5945Mhz
-VSWR : <1:1,2
-Polarization : linear
-Use : preferably in the VTX
-Coverage : omni-directional
-Plastic material : Real PLA

-Connector : SMA

Delivered by two.
