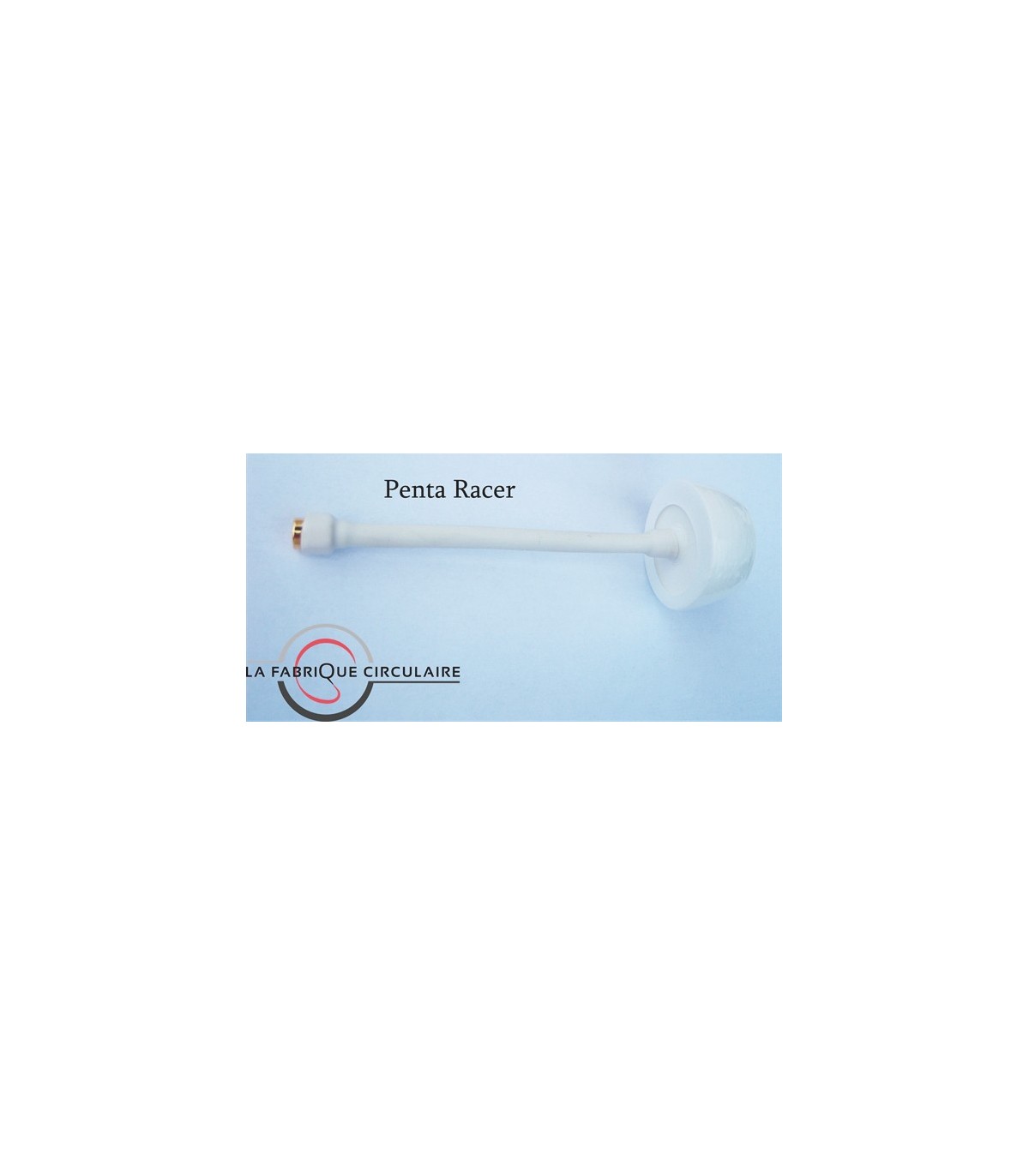

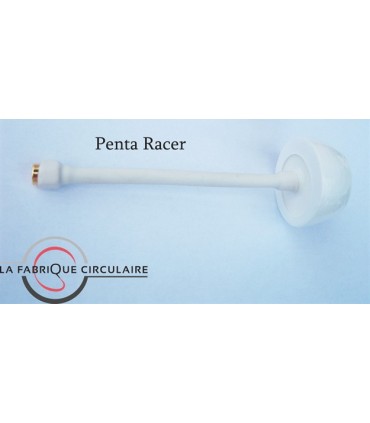

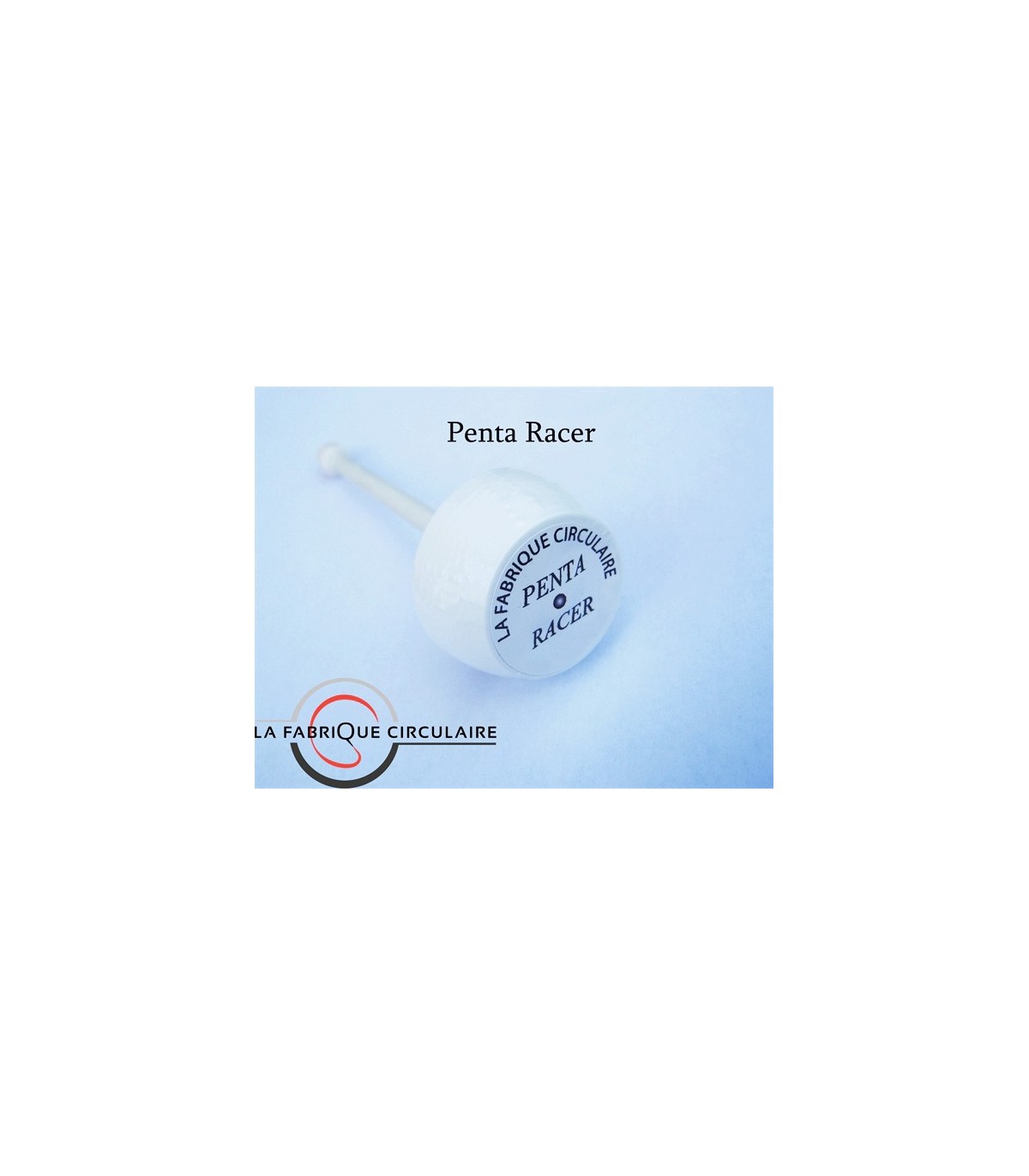

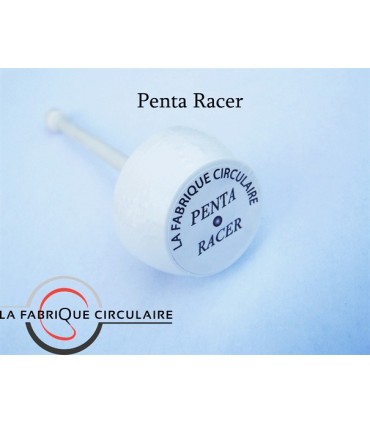

Antenna Penta Racer The Manufactures Circular 5.8 GHz RHCP

The antenna Penta Racer of LaFabriqueCirculaire is a pentalobe omni-directional protected in a top PLA white. Its coaxial is also protected by a sheath which imprisons the wheel of the plug-in connector, convenient for clamping difficult and little accessible !

With a length of 12 cm it will be well clear of the drone, and this will limit the loss of signal.

Antenna very solid with a level of performance very convincing !

Technical characteristics

-Bandwidth : 5645-5945 MHz

-Gain : 1,9-2,1 dBi / 50 Ohm

-SWR : <1,2

-Circular polarization : RHCP

-Coverage : omni-directional

-Coax semi-rigid 18 GHz

-Lobes : tempered steel, copper, varnished

-Dimensions : 12 x 4 cm

-Recommended use : VTX

Connector SMA male
