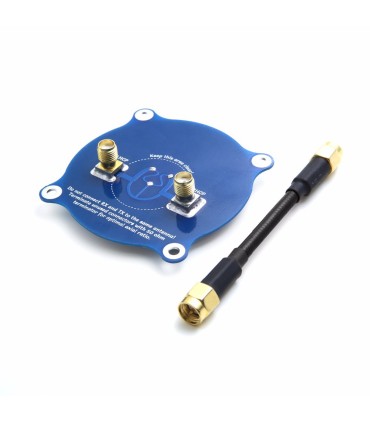

GEPRC Triple feed patch antenna 5.8 GHz RHCP or LHCP

The antenna Triple Feed Patch is a directional antenna with circular polarization, created by Maarten Baert in collaboration with Robin Theunis.

The design goals are based on :

-Good efficiency of radiation

-Good axial ratio, not only directly perpendicular to the patch, but also off-center.

-A cost of manufacturing low

Technical characteristics

-Brand : GEP-RC

-Model : Triple Feed Patch

-Center frequency : 5.8 GHz

-Circular polarization right or left depending on the connector used

-Bandwidth : 660 MHz (5.47 – 6.13 GHz)

-Correspondence : S11 <-20 db="" vswr="" 1="" 22="" at="" center="" frequency="" p="">

-Axial ratio : <1,3

-Gain : 9.4 dBi

-Beam width-half power : 55 ° (horizontal and vertical)

-Efficiency of the radiation : 83,5%

Supplied in a Softcase.
