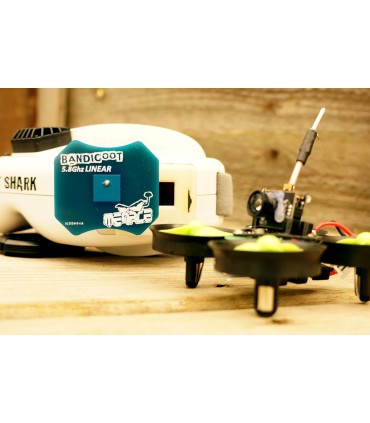

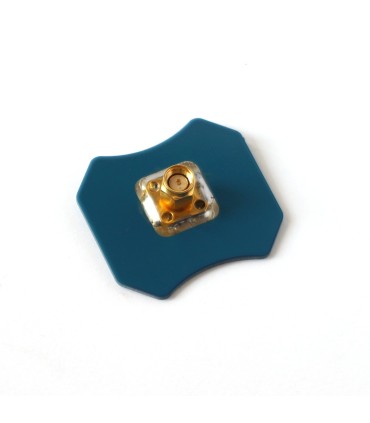

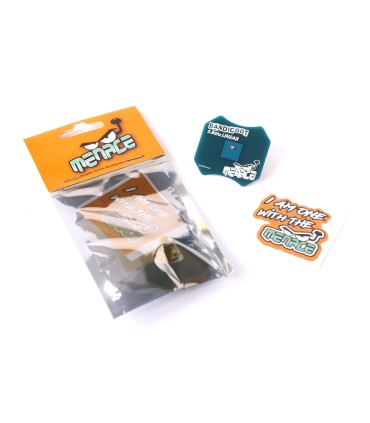

Bandicoot Menace RC receiving Antenna

The BANDICOOT antenna is a small linear reception patch designed to work with the linear whip antennas used on Tiny Whoop and Micro Drones.

If you use a linear whip antenna on your quad mic and you use a circular antenna to receive, you will suffer a loss of 3 dB due to the mixed polarization signals, for each 3 dB signal drop which is half the power so effectively your 25 mW vtx will only be considered as transmitting 12.5 mW.

For increased range and performance and to recover your 3db, use the Bandicoot Menace.

Technical characteristics:

-Frequency: 5800Mhz
-Bandwidth 220 Mhz
-Gain: 6.5 dBi
-Beam width: 150° to -7db, 120° to -5db, 90° to -3db
-Linear polarized
-SMA connector (suitable for Fatshark glasses)
-Dimensions: 45 mm x 41 mm x 16 mm
-Weight: 11 grams
