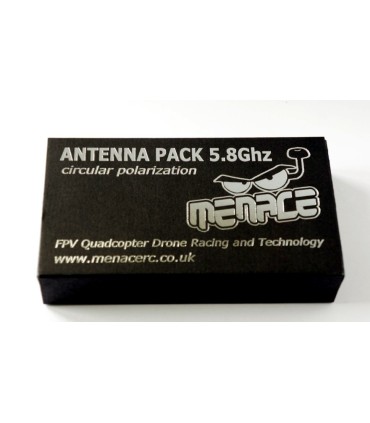

Threat RC pack antenna FPV

This pack antenna was ideal : it allows you to test different antennas at an attractive price, which is perfect for a beginner. It includes the products "best seller" of the british manufacturer Threat RC, to you to the test ! It includes all the antennas and adapters necessary to be sure to find the right antenna for his drone, his glasses FPV or ground station !

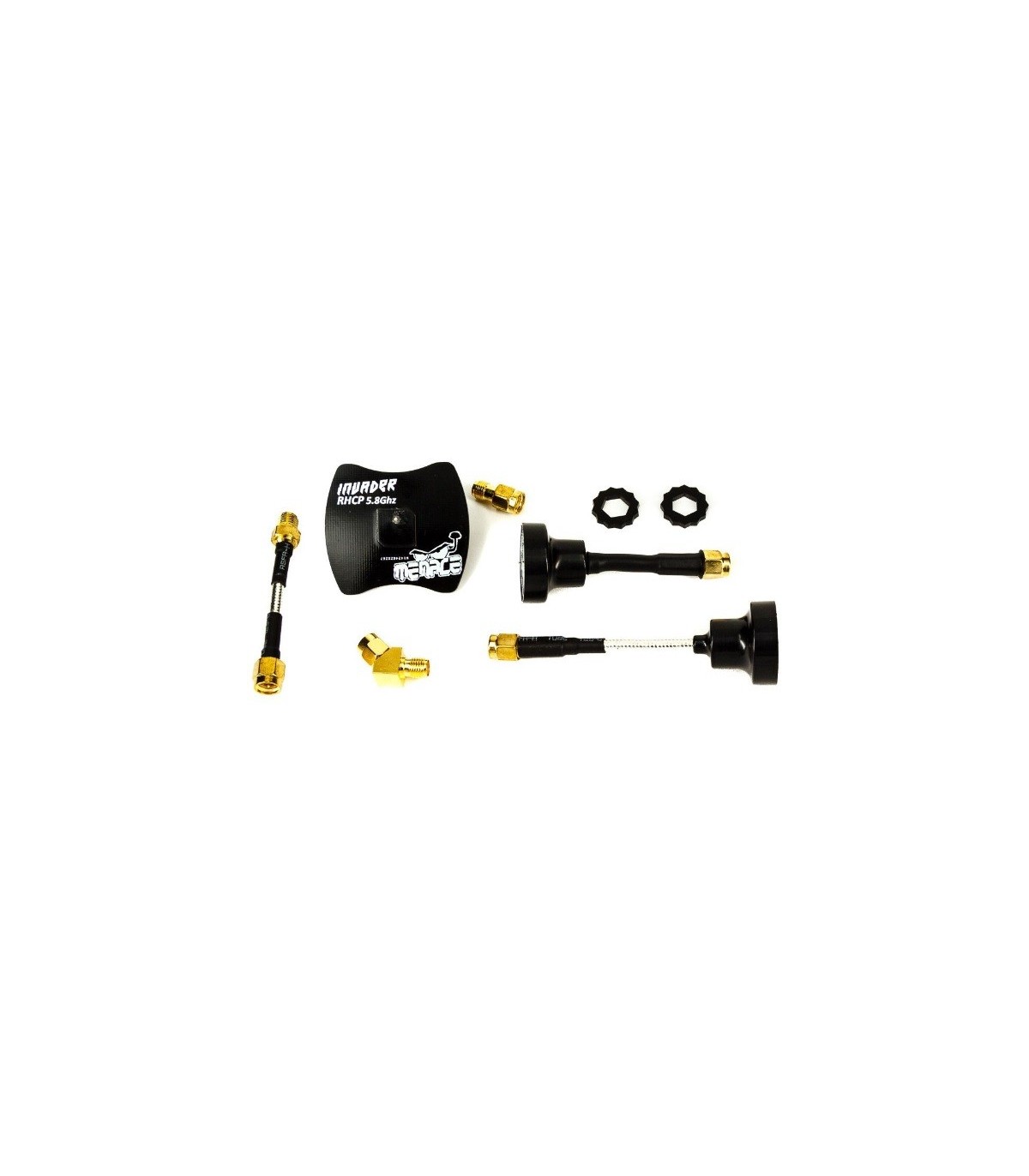

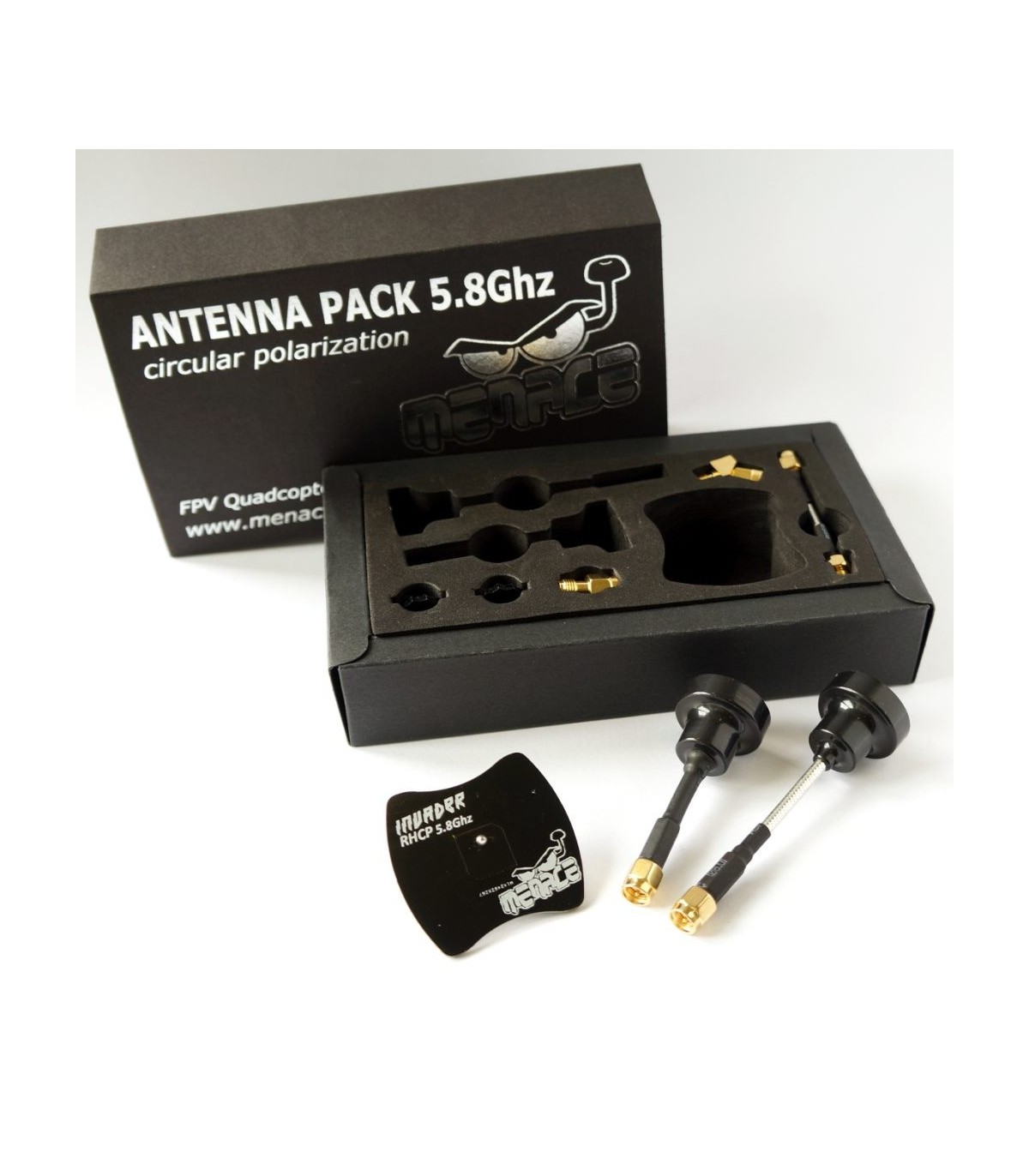

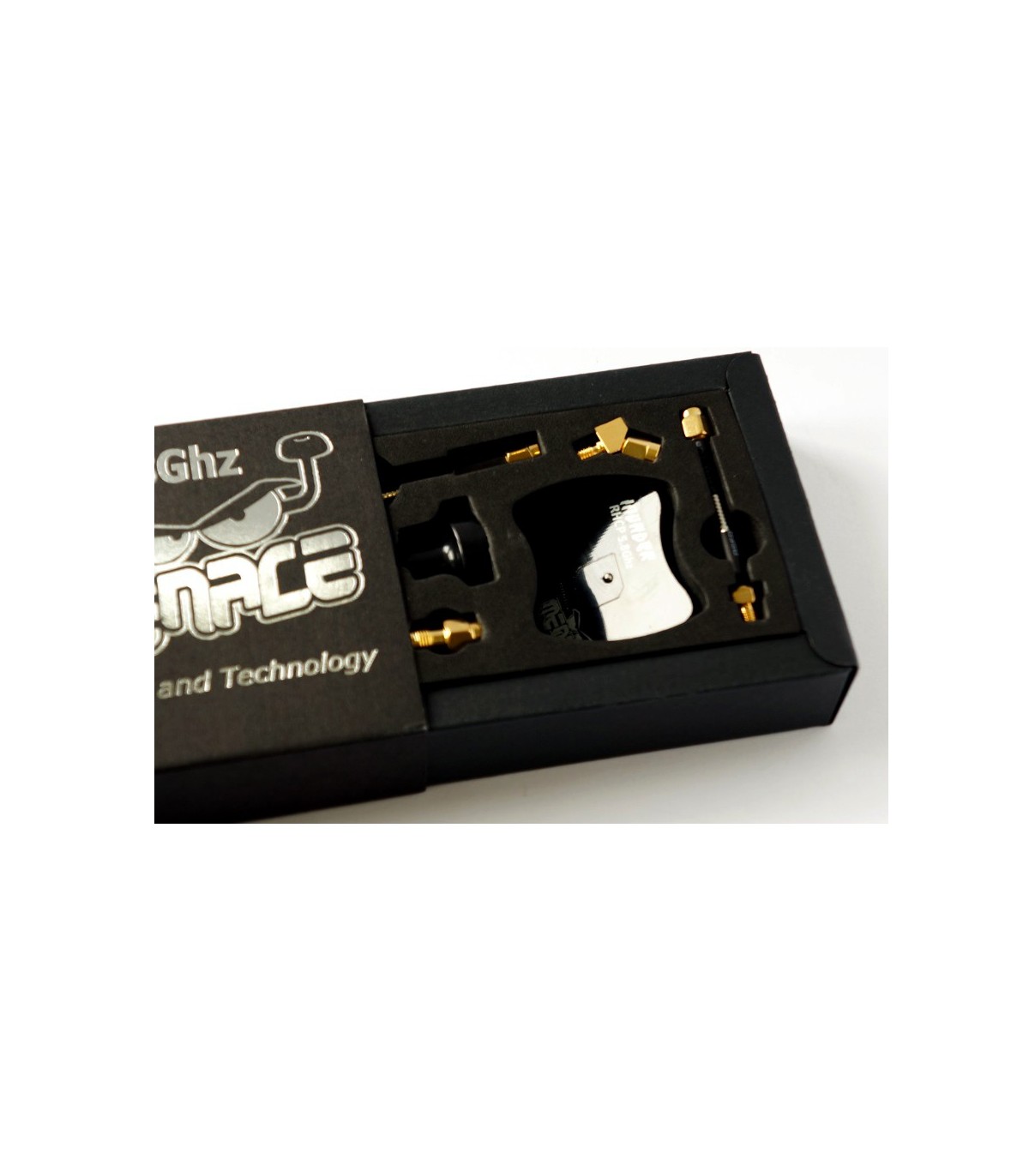

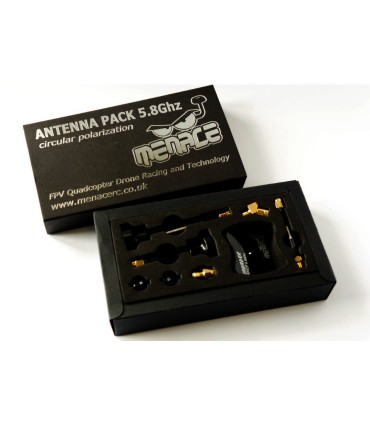

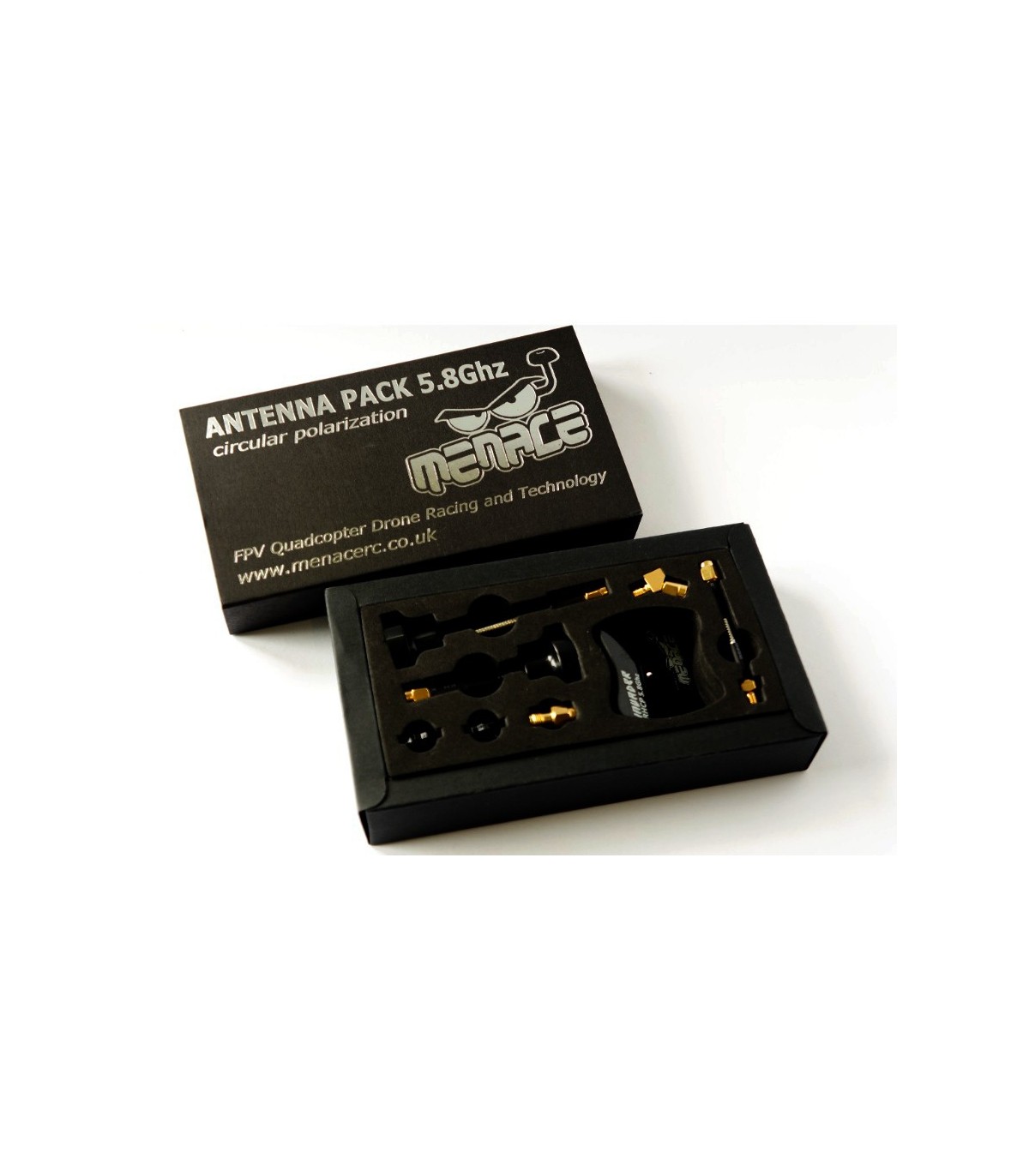

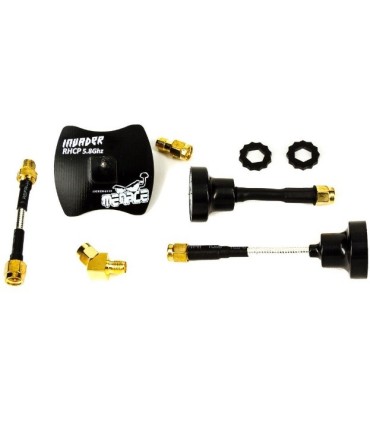

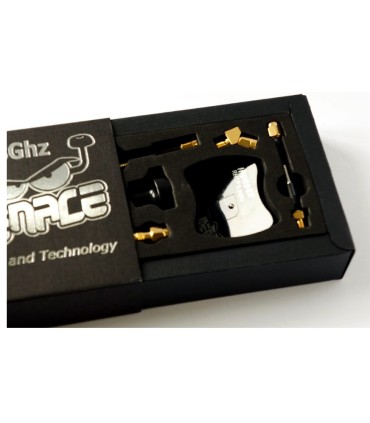

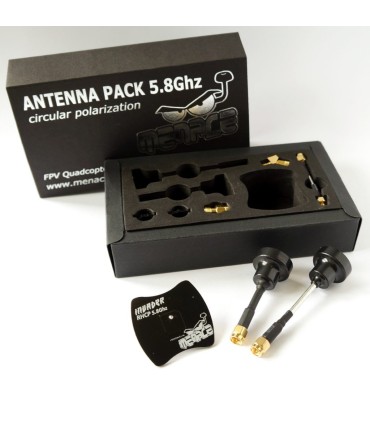

Contents of the pack :

1x Patch Antenna Invader
1x Omni Antenna Raptor
1x Omni Antenna Stubby
1x Extension cable Semi Flexible 50mm SMA
1x Connector 45 degree SMA
1x Adapter SMA to RPsma
2x "finger spinners" SMA

Antenna Invader
Frequency band: 5645 – 5945 Mhz
Gain: 6.5 dBi
Beam width: 150° to -7 db, 120°- 5db, 90° to -3db
Polarization right-hand / Right-Hand Circular Polarised (RHCP)
SMA connector (compatible with goggle FPV Fatshark)
Dimensions: 45mm x 41mm x 16mm
Mass: 11grammes

Antenna Raptor
Central frequency 5.8 GHz
Frequency band: 5550 – 6050 MHz
coeff of reflection < -20dB, VSWR <1.22
Gain: 1.09 dB efficiency: 92%
Axial Ratio <1.3
Beam width: 360 degrees
Polarization right-hand / Right-Hand Circular Polarised (RHCP)
SMA connector
Height: 85mm
Weight: 9.4 grams

Antenna Stubby
Central frequency 5.8 GHz
Frequency band: 5550 – 6050 MHz
coeff of reflection < -20dB, VSWR <1.22
Gain: 1.09 dB efficiency: 92%
Axial Ratio <1.3
Beam width: 360 degrees
Polarization right-hand / Right-Hand Circular Polarised (RHCP)
SMA connector
coaxial cable under sheath
Height: 62mm
Weight: 9.4 grams
