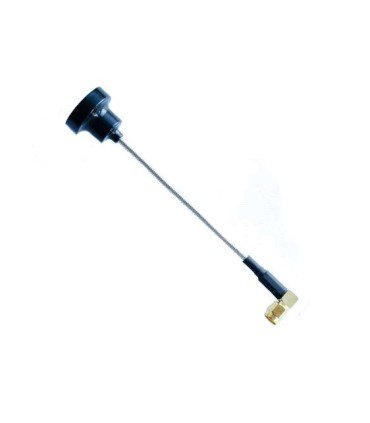

Antenna, Periscope Threat RC RHCP SMA 5.8 Ghz

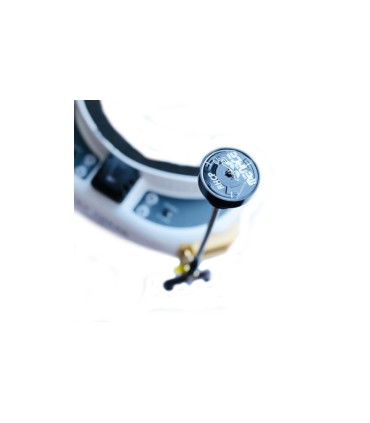

The new antenna Periscope 5.8 GHz in Threat RC is an antenna of which the active part is positioned at the top of your head, not only the signal is more clear, but also to fly behind you and in all possible directions.

Features

• 5.8 Ghz omni-directional
• Coaxial cable longer for minimal losses.
• The unique construction of the printed circuit board allows a manufacturing process to the limits of tolerances specified
• Reception clearer video with a received signal higher by 20% compared to other antennas with a higher gain
• Axial ratio is high for the rejection of reverse polarity.
• Rugged, injection-molded for protection in the event of a collision

Specifications

• Center frequency : 5.8 GHz
• Frequency range: 5550 - 6050 MHz
• Correspondence : S11 <-20dB, VSWR <1.22
• Gain: 1,09 dB efficiency: 92%
• Axial ratio <1,3
• Beam width: 360 degrees
• Polarization : RHCP
• Connector : SMA 90 degree
• Height: 138mm
• Weight: 14 grams
