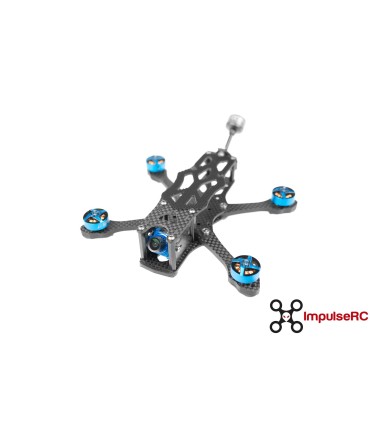

Micro Apex Chassis 3 inch Impulse RC

The Micro Apex incorporates all the unique innovations launched by Impulse RC and today widely imitated. From the geometry of the X-compressed arm, the ability to tilt the camera, the front box section and the design of the main frame divided into 2, to the custom nuts and arm locking key. The arms intersect at the center of mass, where there is 8mm thick carbon fiber, for perfect rigidity, all to enjoy unparalleled flight characteristics for this chassis format.

You can expect to have no arm play or spurious movement, zero vibration or resonance, and of course in a sustainable way. All with the full Impulse RC Collision Damage Waiver warranty that covers all carbon fiber and metal parts for 1 year from the date of purchase.

Technical specifications:

- Weight: 58g

- kit with plastic options provided

Product content:

CARBON

• (1x) Micro Apex Arm Key CF 3.5mm
• (1x) Micro Apex Top Plate CF 1.5mm
• (1x) Micro Apex Hand Lower CF 2mm
• (1x) Micro Apex Hand Upper CF 2mm
• (2x) Micro Apex Cam Side Plate CF 1.5mm
• (4x) Micro Apex 3" Arm CF 4mm

ACCESSORY

• (1x) Micro Apex Hook LIPO pad - BLACK
• (1x) Micro Apex LIPO pad - 2mm BLACK
• (1x) Diamond File - Flat (Mini)
• (1x) Diamond File - Round (Mini)
• (1x) Lipo Strap - Small - Impulse
• (1x) Micro Apex Plastics Kit - BLACK
• (1x) Micro Apex Arm Covers - BLACK - (4 Pack)

HARDWARE

• (4x) M2.5 26mm Standoff - Aluminum - Black
• (2x) M2.5 20mm Standoff - Aluminium - Black
• (4x) M3x11mm Shoulder bolt - High Tensile Carbon Steel - Gunmetal
• (4x) 3x10mm Cone Washer - Aluminum - Black
• (4x) M3 Press Nut - Stainless Steel
• (1x) M3x6mm Cap - High Tensile Carbon Steel - Gunmetal
• (12x) M2.5x8mm Button - High Tensile Carbon Steel - Gunmetal
• (16x) M2x6mm Cap - Stainless Steel
• (16x) M2x8mm Cap - Stainless Steel
• (4x) M3x10mm Countersunk Screw - Stainless Steel
• (4x) M3x16mm Countersunk Screw - Stainless Steel
• (8x) M3x18mm Countersunk Screw - Stainless Steel
• (8x) M2 Lock Nut - Stainless Steel
• (4x) M3 Lock Nut - Stainless Steel
• (4x) 1.8x 1mm O-ring
