Bluetooh dongle for SKYRC charger

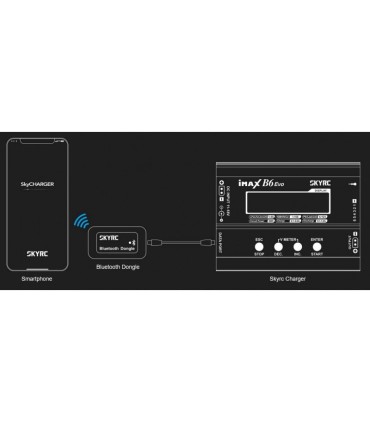

The SkyRC Bluetooth dongle allows you to establish a connection between the SkyRC charger and your smartphone to control and monitor the charger via the SkyCharger app.
Bluetooth 5.0
High speed and long range
Compared with the previous BLE 4.2, BLE 5.0 significantly increases the range, speed and streaming capacity of Bluetooth applications, bringing more peace of mind to users.
Paired and ready instantly
Thanks to BLE's emphasis on sleep and standby modes, the plugged-in dongle that is not in use can remain in standby mode indefinitely; it can also exit this standby mode in an instant, paired and ready to communicate with a smartphone.
Customized for chargers by SkyRC
The proprietary protocol is integrated with some of SkyRC's professional chargers to provide an intelligent experience for RC users.
* Supported models:
- iMAX B6 Evo Charger

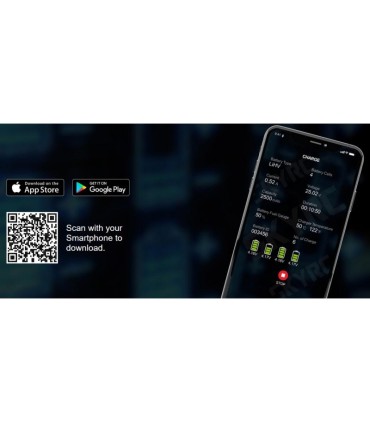

SkyCharger
With SkyCharger, charging is easier and more convenient!
On the fly
With the innovative Scan to Go, RC enthusiasts can simply scan and charge/unload with a unique generated QR code for each battery.
Informed
Monitor status information data at a glance
Technical specifications

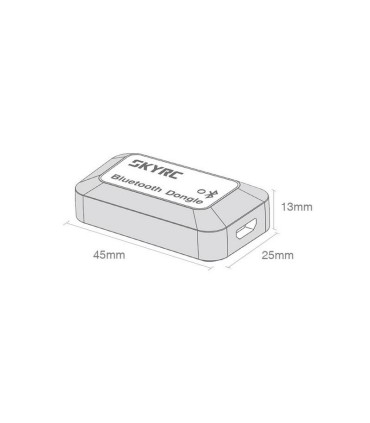

- Case dimensions: 45x25x13 mm
- Weight: 9 g
- supply voltage:4.5V-5.5V
- Consumption: ≤20mA
- Power: 110mW Max
- Bluetooth version: 5.0
- range: 15m
- Interface: Micro USB
- Bluetooth Status:
- LED Flashes blue: ready for connection
- Fixed Blue LED: connected
- Operating temperature: -10 to 55℃ / 14 to 131℉
- Storage temperature: -20 to 70℃/ -4 to 158℉
