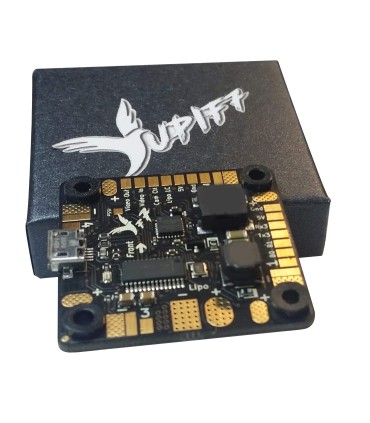

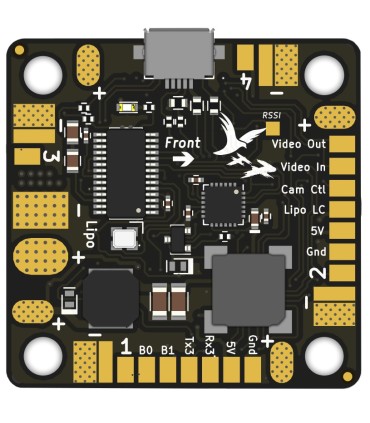

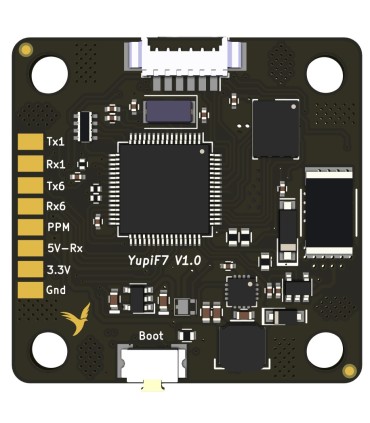

Flight controller Yupi F7

Strong experience with the cards YupiF4, the YupiF7 is a map of flight, top of the range. Its performance, reliability and all of its features make this board YupiF7 the reference in the world of multirotor.

Technical characteristics:

-Microcontroller F7

-New generation of Gyro

-Soft mount integrated to a card

-Input voltage of Lipo 3s – 6s

-Measure the voltage Vbat integrated

-Current sensor 140A built-in

-Input of measuring RSSI

-USB Port (VCP) and 4 UARTs with inverters integrated

-Control the 4 Motors

-Distribution (PDB)

-New BEC 5v 2A

-Output Lipo filtered by LC filter

-Protection Diode TVS

-PPM, Sbus, Spektrum, Crossfire...

-Button Boot

-Buzzer built more powerful than on YupiF4

-OSD built-in

-Driving Circuit OSD camera built-in

-LED drivers possible

-Jack extension for plugging in a GPS / Magnetometer / Barometer

-Flash memory 16MB for registration Balckbox

-Size : 38mm x 38mm

-Holes standard: 30.5 mm x 30.5 mm

-OneShot / MultiShot / DShot

-Flashing direct to the ESC

-Betaflight Ready (delivered flashed with the last version)
