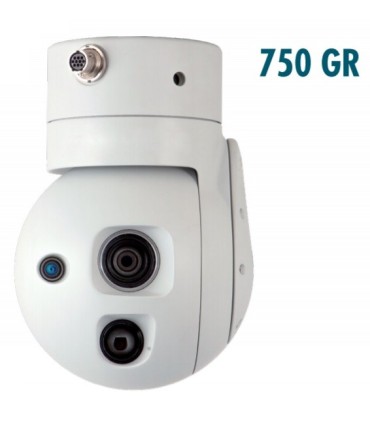

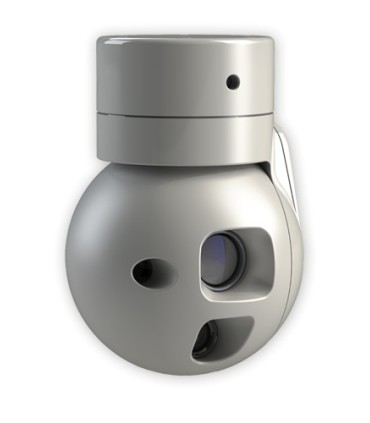

Nacelle stabilized Temis

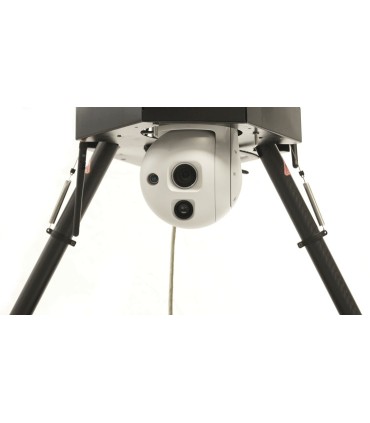

Nacelle video stabilized Temis for drone

Technical characteristics:

-Weight : < 750 gr

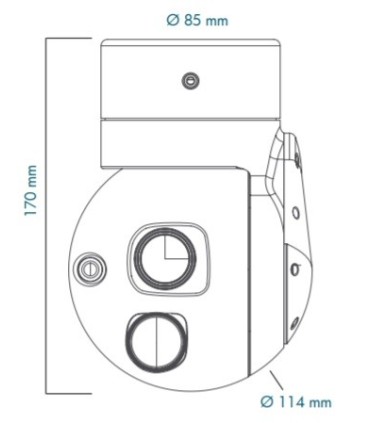

-Height : 170 mm

-Diameter min : 85 mm (main body)

-Maximum diameter : 114 mm

-Pan : 360° / Tilt : 360°

-Power supply : 8V to 36V, standby : 5W, idle 10W, max 20W

Protected against reverse polarity Communication RS232, RS485, Sbus standard Configuration

-Sensors :

-Camera update : Sony FCB-EX15EP optical Zoom X12 (FOV 54° -> 4°)

-Infrared camera : FLIR Quark 2 / 640 uncooled microbolometer 640x512 pixels spectral Band: 7.5 – 13.5 µm Objectives : 19, 35 mm

-Output videos Day : NTSC or PAL Infrared : NTSC gold PAL NTSC or PAL, day or infrared on the same video output.

-Features available :

Geo-tracking, geo-location...

-IMU integrated for stabilization and computation of the artificial horizon. Recording of black box for analysis and optimization of vibrations (sampling 800 Hz). Engine technology training direct. Stabilization
