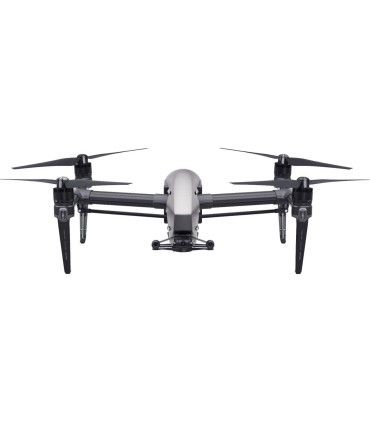

DJI INSPIRE 2

The Inspire 1 has been a revelation. It is the first uav in the world of filmmaking to provide a transmission system for HD video, a nacelle turning on 360°, a 4K camera and a simple control from the application. The arrival of the cameras Zenmuse X5 and X5R positioned it more obvious the Inspiration as a crucial tool for filmmakers around the world.

The Inspire2 reiterates the feat, and sees still further !

A new image processing system that records video up to a resolution of 5.2 K in the formats Adobe CinemaDNG RAW, Apple ProRes and other.

It goes from 0 to 80 km/h (50 mph) in just 5 seconds and reaches a maximum speed of 94 km/h (58 mph). Its speed down to 9 m/s. such speed and agility for an aircraft of this size is a first.

A system of double battery extends the flight time of up to a maximum of 27 minutes (with the X4S), and the technology autochauffante allows him to fly even for very low temperatures.

FlightAutonomy has been reviewed and developed specifically for the Inspire 2, allowing avoidance of obstacles in two directions, and a redundancy of the sensors.

The multiple flight modes smart, have been enhanced, such as Projector Pro, to provide drivers with the ability to create complex plans and spectacular.

The system for transmitting enhanced video is now able to transmit on two channels, with a signal frequency doubles. It can broadcast the video stream of the camera FPV onboard, and the main camera at the same time for a better collaboration between the pilot and the camera operator.

Technical characteristics

Drone

-Model : T650

-Weight : 3440 g (with two batteries and propellers. Basket and camera excluded)

-Weight max. at takeoff : 4,000 g

-Precision hover flight GPS : Vertical : ±0.5 m or ±0.1 m optical system (lower activated) ; Horizontal : ±1.5 m or ±0.3 m optical system (lower activated)

-Angular speed max. : Tilt : 300°/s ; Yaw : 150°/s

-Angle of inclination max. : P Mode: 35° (optical system before activated : 25°); Mode: 35°; ModeS : 40°

-Rate of climb max. : P Mode/A Mode : 5 m/s ; mode-S : 6 m/s

-Speed of descent max. : Vertical : 4 m/s ; inclined : 4 to 9 m/s

-Altitude take-off max. at the level of the sea : 2500 m ; 5 000 m (with propellers in special)

-Wind resistance max. : 10 m/s

-Time-of-flight max. : About 25 min (with Zenmuse X5S)

-Engine model : DJI 3512

-Model propeller : DJI 1550T

-Operating temperature : -20 to 40 °C (-4 to 104 °F)

-Diagonal (without propeller)605 mm (in landing)

-Speed max. : 94 km/h (58 mph, forward flight in S mode)

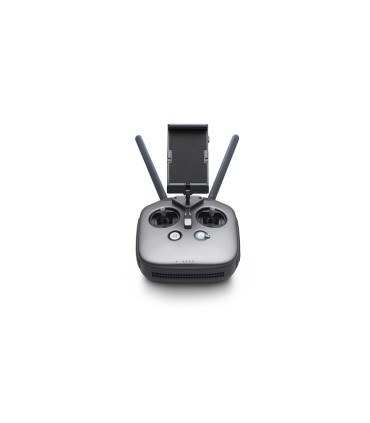

Remote control

-Operating frequency : 2 400 to 2 483 GHz ; 5 725 5 850 GHz

-Transmission Distance max. : 2.4 GHz : 7 km (FCC) ; 3.5 km (THIS) ; 4 km (SRRC)

(open space, no interference) : 5.8 GHz : 7 km (FCC) ; 2 km (EC) ; 5 km (SRRC)

-EIRP : 2.4 GHz: 26 dBm (FCC); 17 dBm (THIS); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (THIS); 20 dBm (SRRC)

-Battery : LiPo 2S 6000mAh

-Output power : 9 W (excluding power supply for mobile device)

-USB power : iOS : 1, The 5.2 V (max) ; Android : 1.5 A, To 5.2 V (max)

-Operating temperature : -10 to 40 °C (14 to 104 °F)

Flight battery Smart (TB50-4280mAh-22,8 V)

-Capacity : 4 280 mAh

-Voltage : Up To 22.8 V

-Battery Type : LiPo 6S

-Energy : 97,58 Wh

-Net weight : 515 g

-Charging temperature : 5 to 40 °C (41 °to 104 ° F)

-Operating temperature : -10 to 40 °C (14 to 104 °F)

-Power charging-max. : 180 W

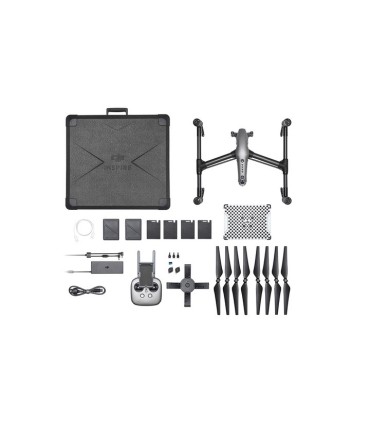

Pack containing

-1 Inspire2

-1 remote control

-4 pairs of propellers

-2 batteries-of-flight smart

-1 battery charger

-1 charging station battery

-1 power cable

-1 USB cable (with double ports (A)

-1 card microSD 16 GB

-1 plate of calibration of the optical system

-3 shock absorbing pod

-1 pair of fasteners to propellers

-1 carrying case

-4 stickers-insulating battery
