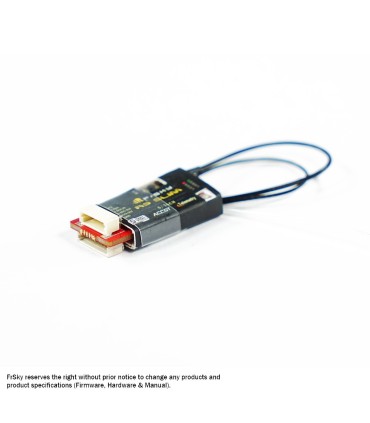

RADIO receiver: Frsky R9 Slim+

As the second receiver of the series R9, R9 Slim+ includes all the benefits of the old receiver long-range R9. Besides that, the R9 Slim+ has the lowest latency and offers the best compatibility with all transmitters FrSky. The function of redundancy ensures the safety of your plane, and form tiny and the reduced weight allows it to be mounted in any device.

Technical Characteristics :

• Dimension: 30 * 13.5 * 5mm (L × W × H)
• Weight: 3.2 g
• Number of channels: 6 channels (channel outputs conventional)
• Working voltage range: DC 3.5 V ~ 10V
• Operating current: 100mA @ 5V
• Operation range: up to 10 km or more
• Compatibility: module R9M

Features :

• 900MHZ (non-EU) / 868MHZ (EU version)
• small and conveniently put in place
• Low-latency and high-precision
• Function redundancy support
• Smart Port enabled, and support transmission of telemetry data
• Detection of battery voltage

Note : Before using the receiver R9 Slim Long Range, please update the firmware of the module R9M for the best performance. Download the Firmware Here
