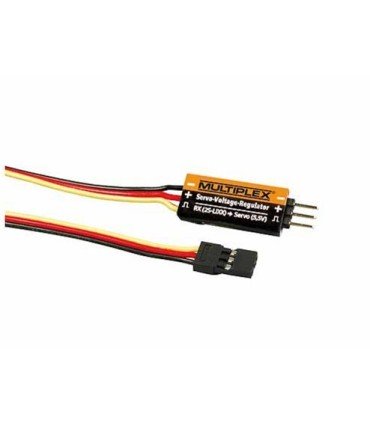

Voltage regulator for Multiplex servo

This regulator allows a mixed operation of 2S LiPo compatible servos (HV) and "normal" servos 4.8 / 6V.
It is enough to connect the system between the "normal" servo accepting only a voltage of 4.8/6V and the receiver, even if the rest of the receiving chain is powered between 7.4 and 8.4V.
The system regulates the voltage to 5.5 V.
With this regulator, other accessories can be connected to the receiver with the voltage thus reduced.(Gyroscope, stabilization system, computer, lighting, etc...)

For safety reasons, the controller has an on-board surge protection system that prevents the destruction of servos or other connected components.
It also avoids overloading the power supply of the model, for example by a blocked servo.

Technical specifications:

- Length: 35mm (210mm with cable)
- Width: 12mm
- Height: 9mm
- Weight: 8g
- Supply voltage: Max. 8.4v
- Output voltage: 5.5V
- Permanent current: 0.5A
- Power consumption max.: 1.45w
