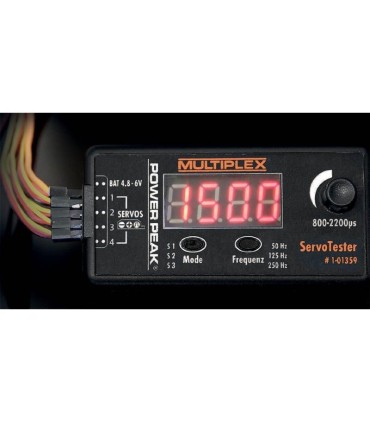

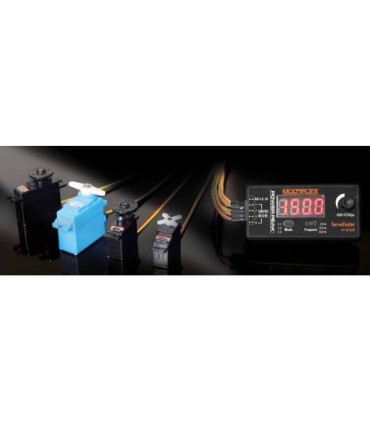

POWER PEAK Multiplex Servo Tester

The Multiplex POWER PEAK servo tester is the ideal instrument for the precise adjustment of your servos, with the possibility of connecting 4 servos simultaneously. it is small easy to carry.

Product content :

• x1 POWER PEAK Multiplex Servo Tester

Technical characteristics :

• Voltage range: 4.8V-6V
• Pulse range: 800-2200 µs
• 3 operating modes ('Mode' button) :
• S1: manual, from 800 to 2200 µs
• S2: centering, at 1500 µs
• S3: scanning from 800 to 2200 µs, with speed variation using the slider.
• 3 frequencies ('Frequenz' button) :
• 50Hz for analog/classic servos
• 125Hz 8µs for digital/digital servos
• 250Hz 4µs for digital/digital servos
• Dimensions: 75 x 38 x 27 (L x W x H)
• Weight: 27g
